Passenger Air Bag Module: Notes

Fig 1: Identifying Passenger Air Bag Module Components (1 Of 2)

Courtesy of FORD MOTOR CO.

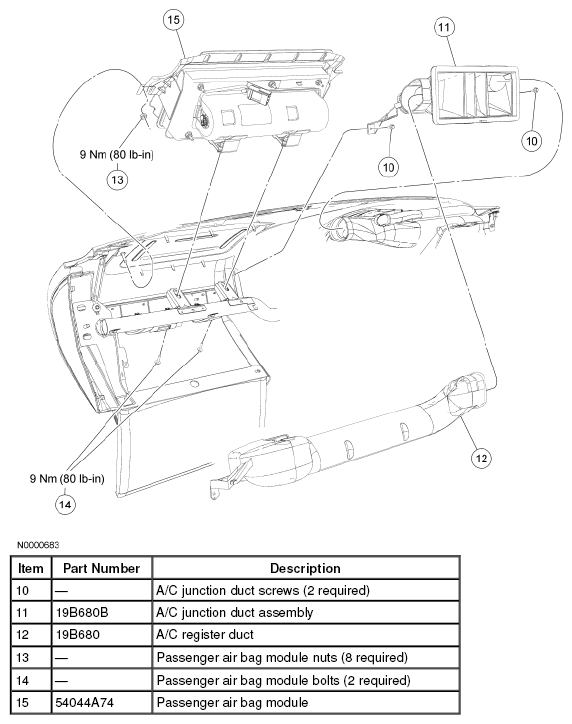

Fig 2: Identifying Passenger Air Bag Module Components (2 Of 2)

Courtesy of FORD MOTOR CO.
