Safety Belt System - Exploded View, Rear
›
Rear Safety Belt System
Rear Safety Belt System
NOTE:
RH rear safety belt components shown, LH similar.

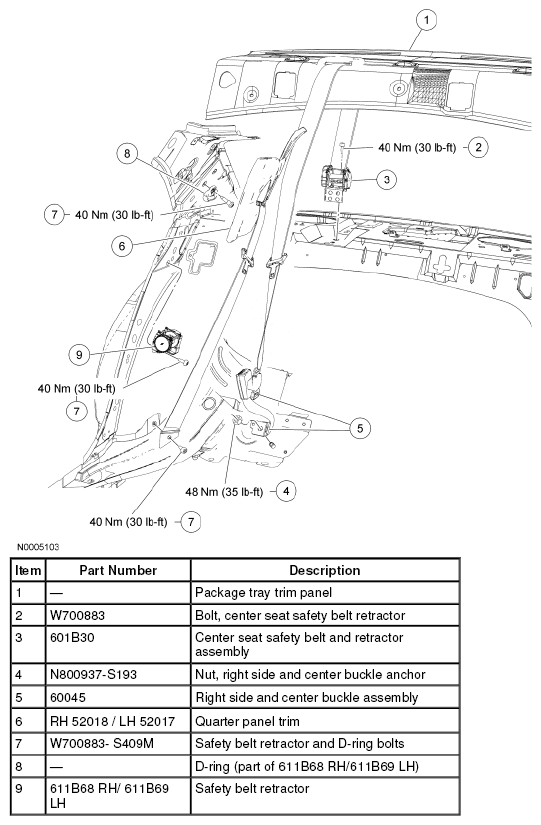

Fig 1: Exploded View Of Rear Safety Belt System With Torque Specifications
Courtesy of FORD MOTOR CO.
For additional information, refer to appropriate procedure.
Courtesy of FORD MOTOR CO.
