Power Steering Fluid Cooler: Notes

SPECIAL TOOL(S) CHART

G04690127Courtesy of FORD MOTOR CO.
 Installer, Constant Velocity Boot Clamp
205-343 (T95P-3514-A)

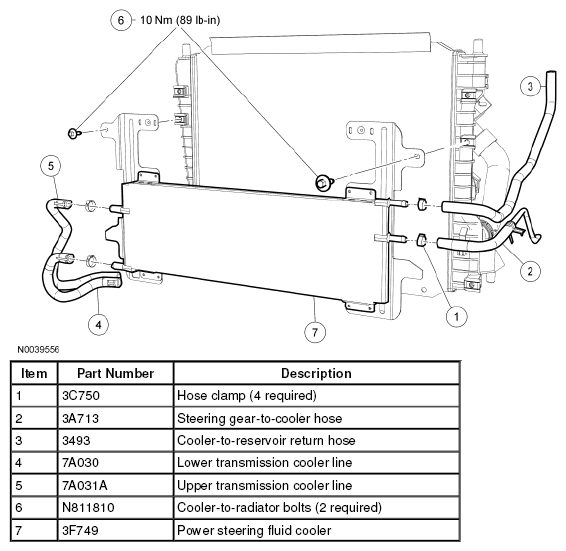

Fig 1: Power Steering Fluid Cooler Replacement Components With Torque Specifications
G04690128Courtesy of FORD MOTOR CO.
