Removal and Installation

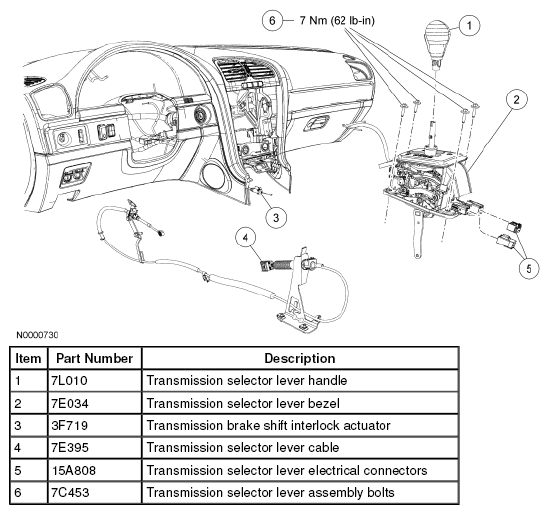

Fig 1: Transmission Selector Lever Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.

With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING AND LIFTING .
Place the range selector lever in the D5 position.
Remove the center console. For additional information, refer to INSTRUMENT PANEL AND CONSOLE .
Remove the handle and cover.
1. Slide the cover down.
2. Remove the 2 screws.
3. Remove the handle and the cover.

  Fig 2: Identifying Handle, Cover And Screws
  Courtesy of FORD MOTOR CO.
Move the shifter bezel aside.

Fig 3: Locating Shifter Bezel
Courtesy of FORD MOTOR CO.
Remove the PRNDL indicator bulb from the electrical connector.

Fig 4: Locating PRNDL Indicator Bulb Electrical Connector
Courtesy of FORD MOTOR CO.
Disconnect the cable from the lever.
1. Remove the shift interlock cable from the bracket.
2. Disconnect the cable from the lever.

  Fig 5: Identifying Lever Cable And Shift Interlock Cable
  Courtesy of FORD MOTOR CO.
Disconnect the transmission shift cable from the shifter assembly.

Fig 6: Locating Transmission Shift Cable
Courtesy of FORD MOTOR CO.
Disconnect the 2 electrical connectors from the shifter assembly.

Fig 7: Locating Electrical Connectors
Courtesy of FORD MOTOR CO.
Remove the 4 screws from the shift lever assembly base.
- To install, tighten to 7 Nm (62 lb-in).

  Fig 8: Locating Shift Lever Assembly Base Screws
  Courtesy of FORD MOTOR CO.

NOTE: A selector lever cable adjustment must be carried out after installation. For additional information, refer to SELECTOR LEVER CABLE ADJUSTMENT .

To install, reverse the removal procedure.
