Forward Clutch Assembly

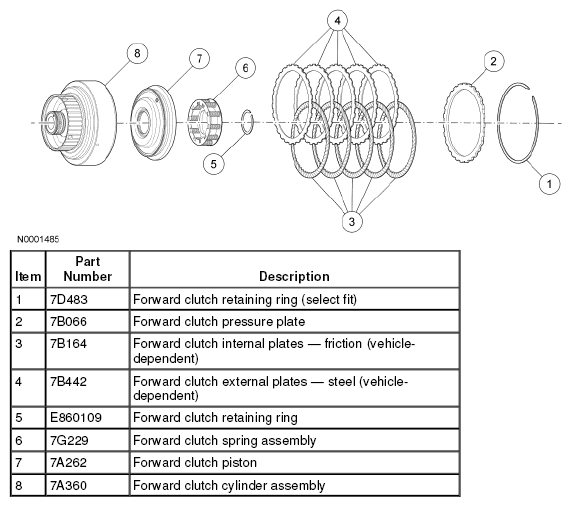

Fig 1: Exploded View Of Forward Clutch Assembly
G04691508Courtesy of FORD MOTOR CO.
