Extension Housing Gasket: Notes

SPECIAL TOOL CHART

G04691259Courtesy of FORD MOTOR CO.
 Installer, Drive Pinion Flange
205-479
G04691260Courtesy of FORD MOTOR CO.
 Installer, Output Shaft Flange
307-404
G04691261Courtesy of FORD MOTOR CO.
 Remover, Output Shaft Flange
307-523

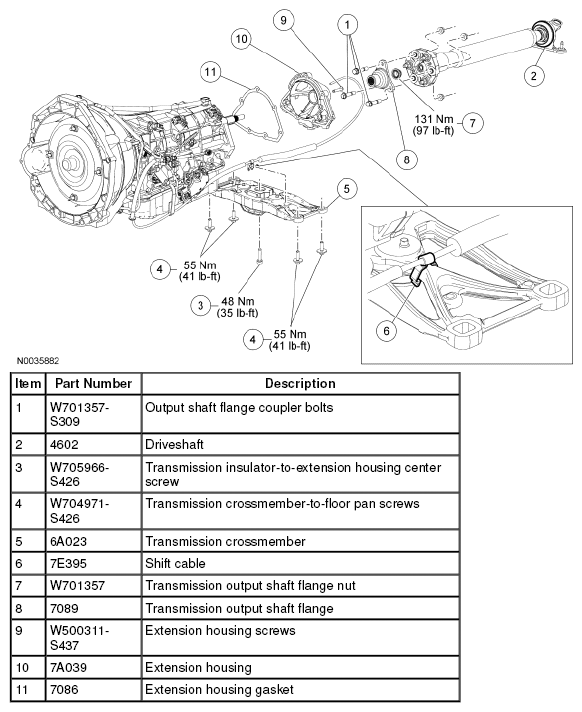

Fig 1: Extension Housing Gasket And Torque Specifications
G04691262Courtesy of FORD MOTOR CO.
