Main Control Valve Body: Notes

SPECIAL TOOL CHART

Courtesy of FORD MOTOR CO.

Aligner, Valve Body (2 required) 307-334 (T95L-70010-C)

MATERIAL CHART

Item	Specification
MERCON® V Automatic Transmission Fluid XT-5-QM	MERCON® V

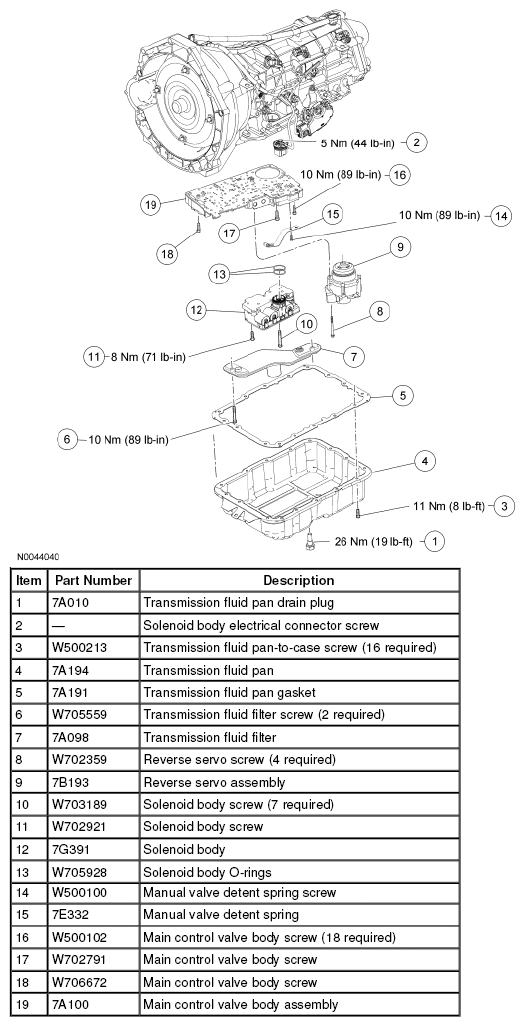

Fig 1: Main Control Valve Body Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.
