Multifunction Switch, Lamp Portion: Schematic

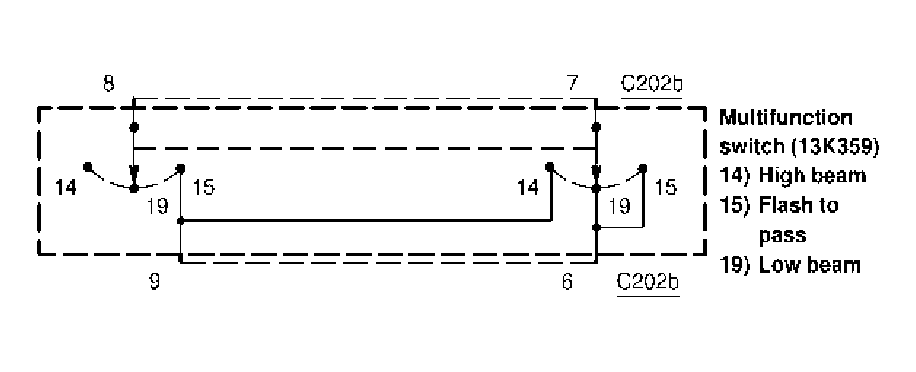

Fig 1: Multifunction Switch Schematic Diagram - Lamp Portion
G04596903Courtesy of FORD MOTOR CO.
