Seat - Exploded View, Second Row

Rear Seat Backrest, Second Row, 20 Percent

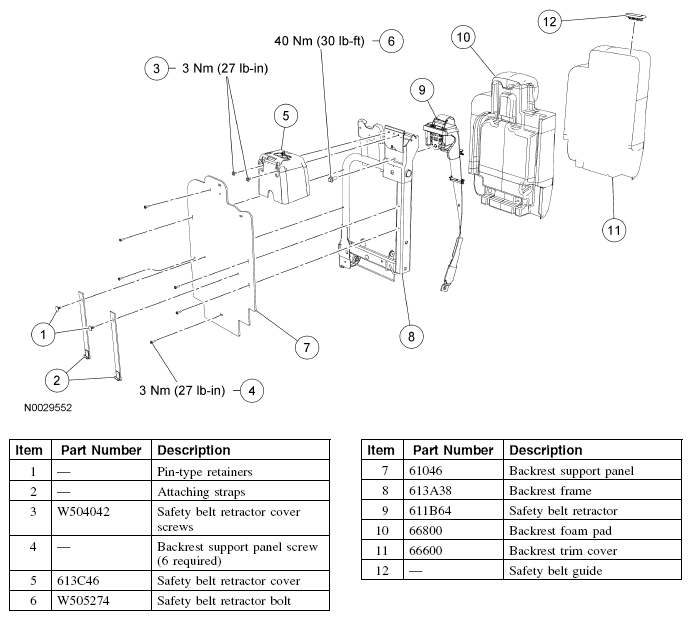

Fig 1: Exploded View Of Rear Seat Backrest, Second Row, 20 Percent Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.

Rear Seat Cushion, Second Row, 20 Percent

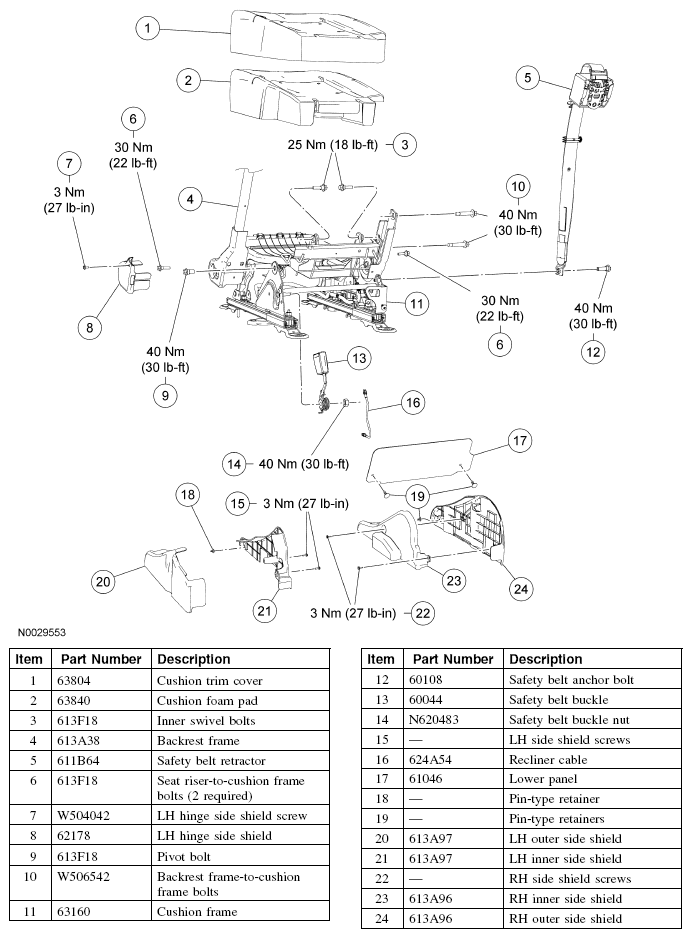

Fig 2: Exploded View Of Rear Seat Cushion, Second Row, 20 Percent Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.

Rear Seat Backrest, Second Row, 40 Percent

NOTE: LH backrest shown, RH similar.

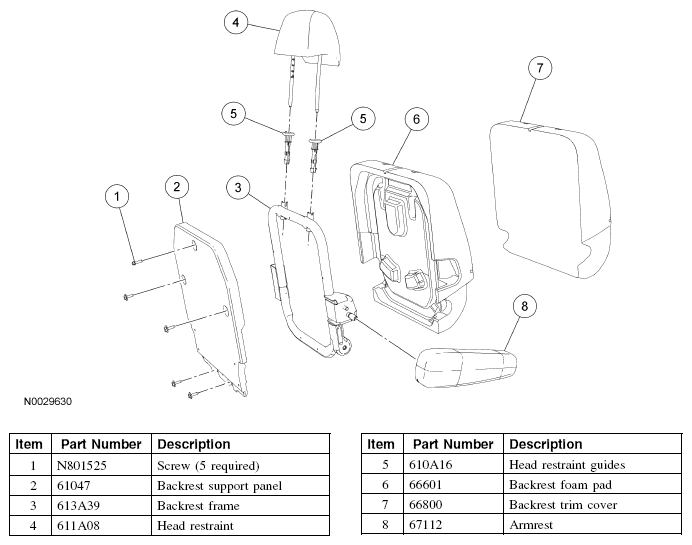

Fig 3: Identifying Exploded View Of Rear Seat Backrest, Second Row, 40 Percent Components

Courtesy of FORD MOTOR CO.

Rear Seat Cushion, Second Row, 40 Percent

NOTE: LH cushion shown, RH similar.

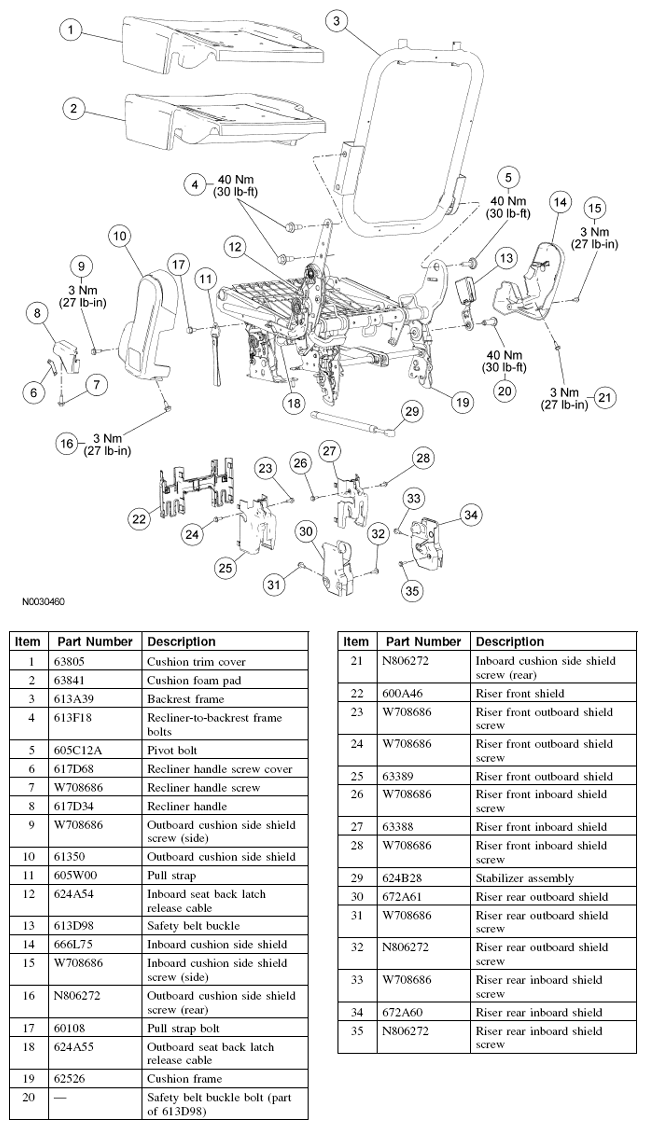

Fig 4: Exploded View Of Rear Seat Cushion, Second Row, 40 Percent Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.
