Seat - Exploded View, Third Row

40 Percent Backrest

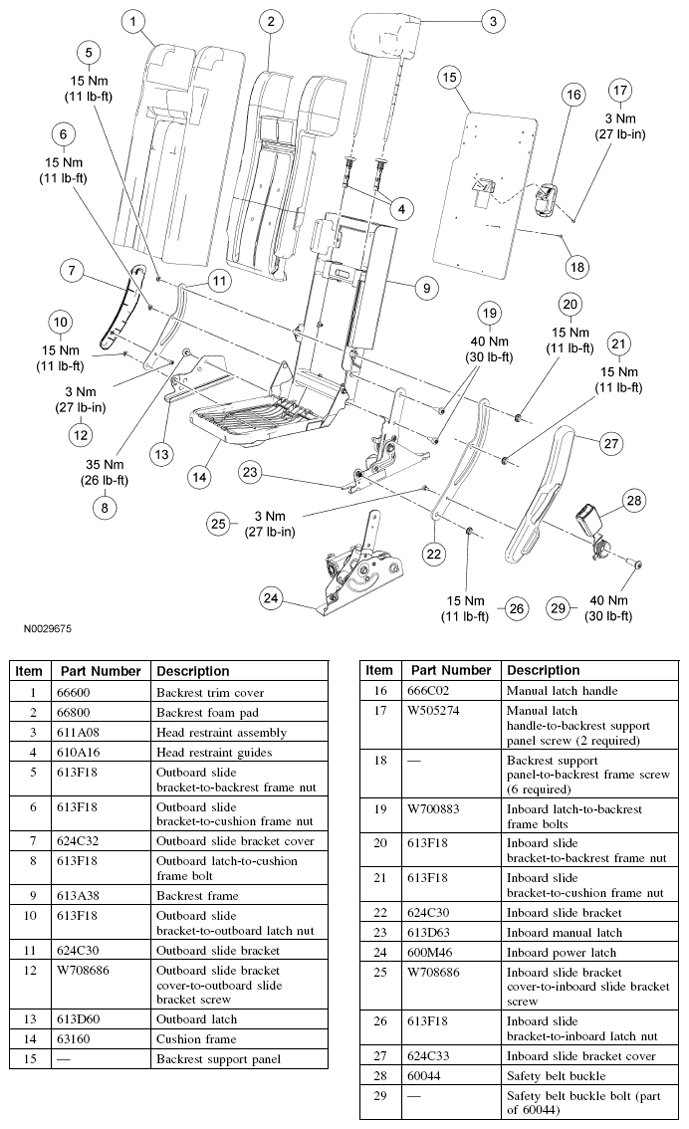

Fig 1: Exploded View Of Seat Replacement Components -- Third Row With Torque Specifications
G04630783Courtesy of FORD MOTOR CO.

60 Percent Backrest

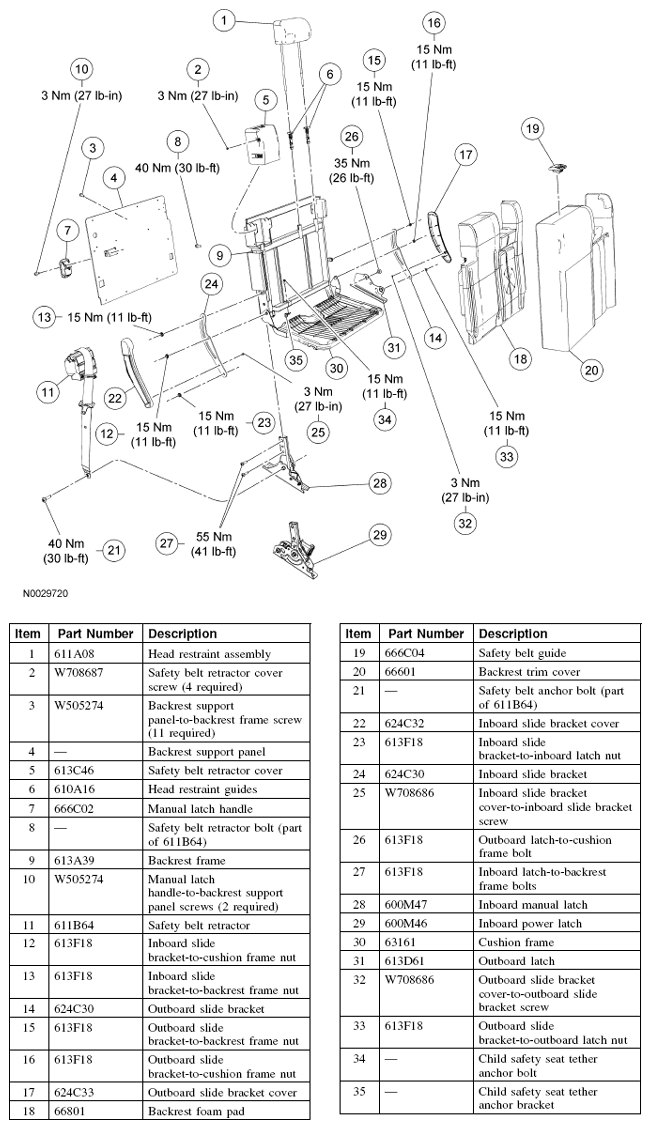

Fig 2: Exploded View Of Seat Replacement Components -- Third Row (60 Percent Backrest) With Torque Specifications
G04630784Courtesy of FORD MOTOR CO.

40 Percent Cushion

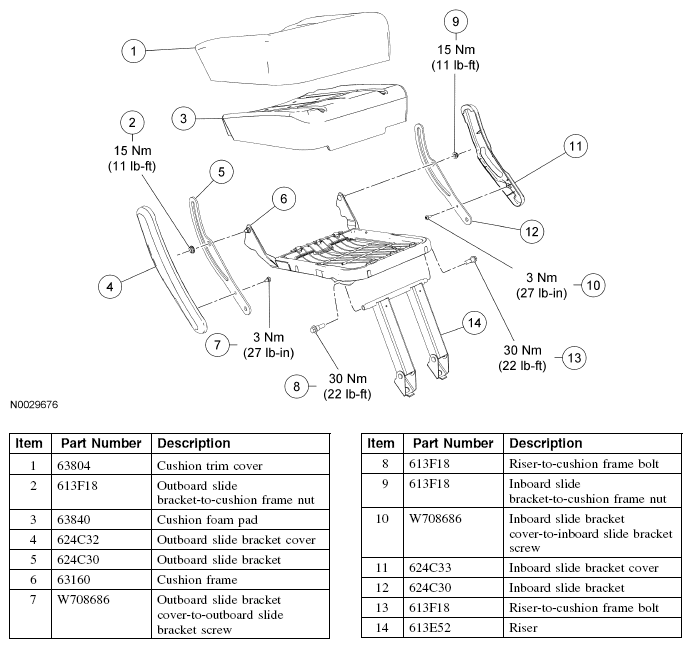

Fig 3: Exploded View Of Seat Replacement Components -- Third Row (40 Percent Cushion) With Torque Specifications
G04630785Courtesy of FORD MOTOR CO.

60 Percent Cushion

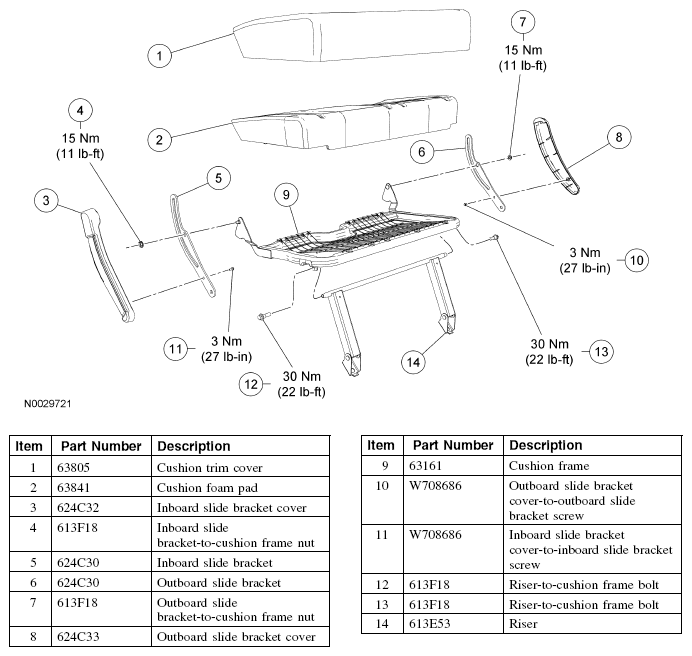

Fig 4: Exploded View Of Seat Replacement Components -- Third Row (60 Percent Cushion) With Torque Specifications
G04630786Courtesy of FORD MOTOR CO.
  1. For additional information, refer to the appropriate procedure.
