Home › Lincoln › 2006 › Navigator RWD › Repair and Diagnosis › Body & Frame › Seats › Seat System › Removal And Installation › Seat - Third Row › Notes

Seat - Third Row: Notes

NOTE: 60 percent seat shown, 40 percent seat similar.

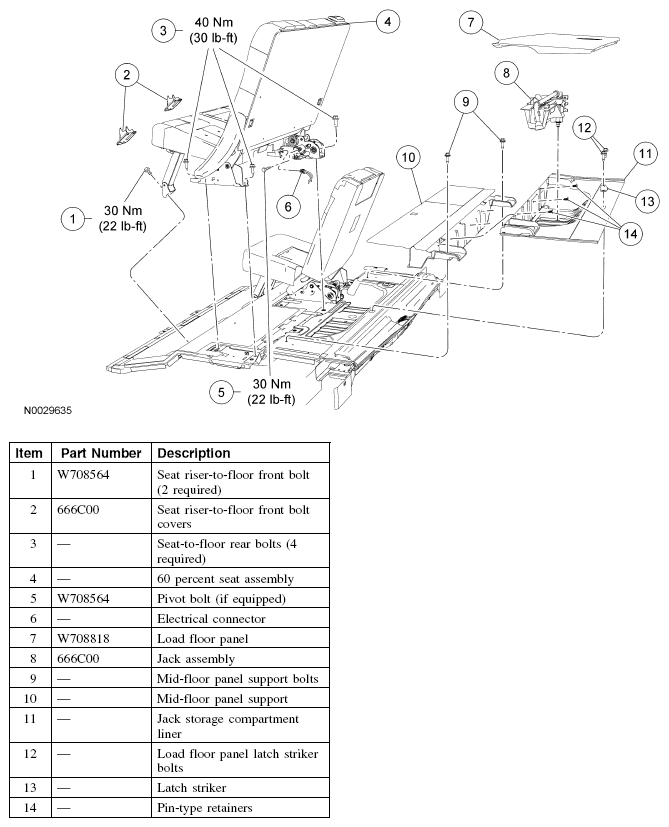

Fig 1: Exploded View Of Seat -- Third Row Replacement Components With Torque Specifications
G04630779Courtesy of FORD MOTOR CO.
