Valve Cover - LH: Notes

MATERIALS

Item Specification
Motorcraft Metal Surface Prep
ZC-31		 -
Silicone Gasket Remover
ZC-30		 -
Silicone Gasket and Sealant
TA-30		 WSE-M4G323-A4

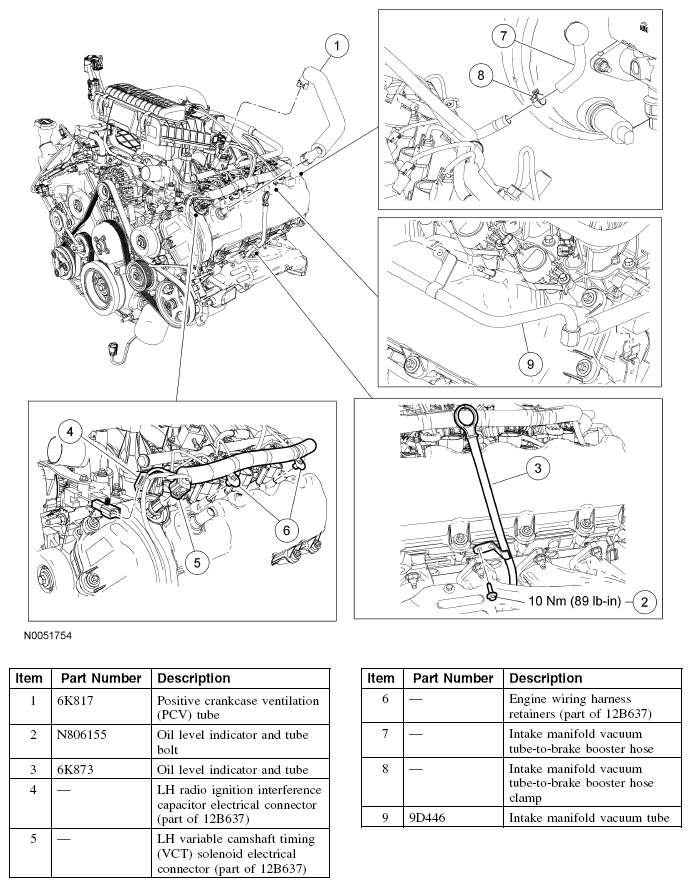

Fig 1: Identifying Valve Cover Components - LH (1 Of 2)
G04626908Courtesy of FORD MOTOR CO.

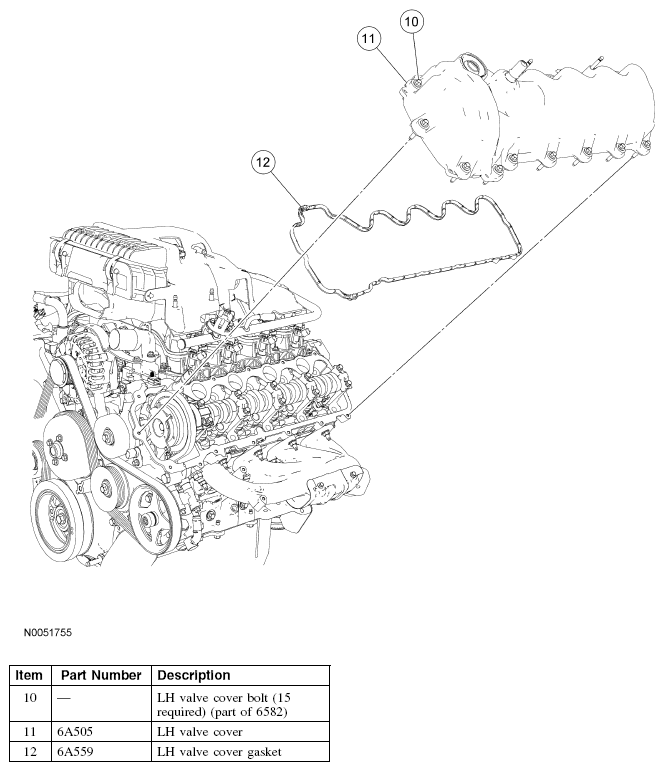

Fig 2: Identifying Valve Cover Components - LH (2 Of 2)
G04626909Courtesy of FORD MOTOR CO.
