Engine Mount - LH: Notes

SPECIAL TOOL(S)

Courtesy of FORD MOTOR CO.	Lifting Brackets, Engine 303-050 (T70P-6000)
Courtesy of FORD MOTOR CO.	3-Bar Engine Support Kit 303-F072

MATERIAL

Item	Specification
Motorcraft SAE 5W-20 Premium Synthetic Blend Motor Oil XO-5W20-QSP (in Canada Motorcraft SAE 5W-20 Super Premium Motor Oil CXO-5W20-LSP12) or equivalent	WSS-M2C930-A

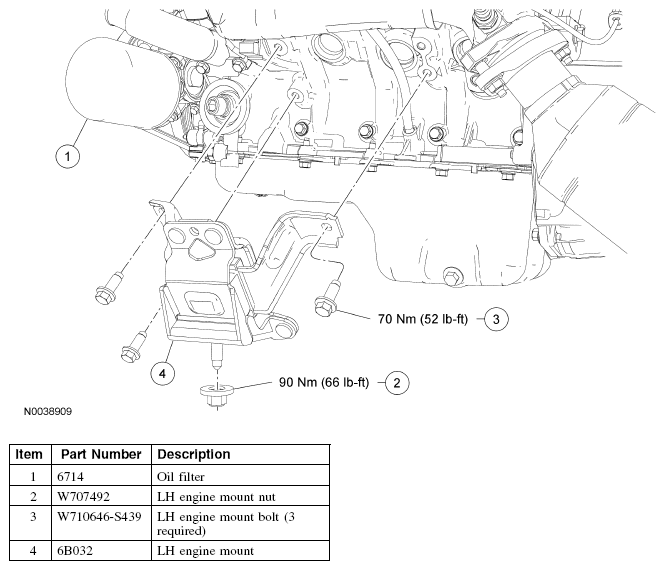

Fig 1: Engine Mount -- LH Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.
