Engine Mount - RH: Notes

SPECIAL TOOL(S)

G04705290Courtesy of FORD MOTOR CO.
 Lifting Brackets, Engine
303-050 (T70P-6000)
G04705291Courtesy of FORD MOTOR CO.
 3-Bar Engine Support Kit
303-F072

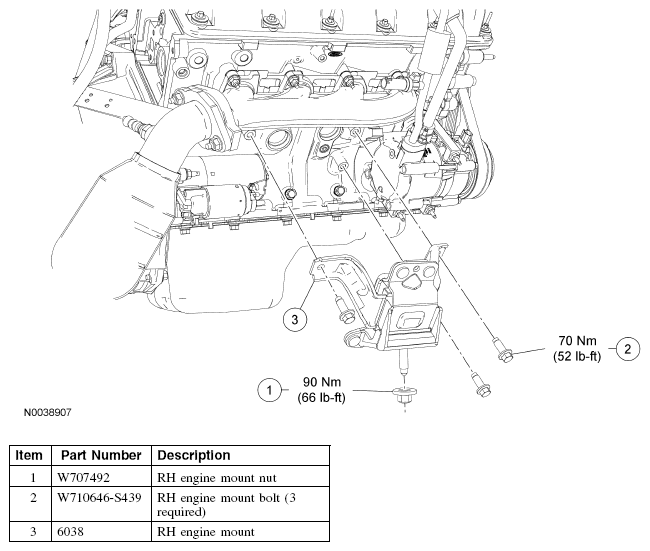

Fig 1: Engine Mount -- RH Replacement Components With Torque Specifications
G04705292Courtesy of FORD MOTOR CO.
