In-Vehicle Repair: Flexplate: Installation

  1. Position the flexplate and loosely install the 6 bolts. Tighten the bolts in the sequence shown to 80 Nm (59 lb-ft).

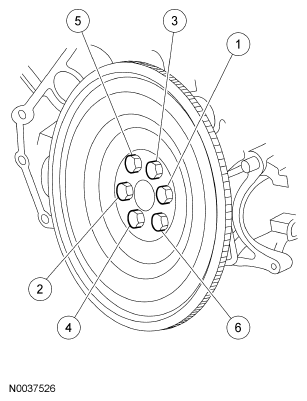

    Fig 1: Identifying Tightening Sequence For Flexplate Bolts
    G04705252Courtesy of FORD MOTOR CO.
  2. Install the transmission. For additional information, refer to AUTOMATIC TRANSAXLE/TRANSMISSION .
