Oil Cooler: Notes

MATERIAL

Item Specification
Motorcraft SAE 5W-20 Premium Synthetic Blend Motor Oil XO-5W20-QSP (US); Motorcraft SAE 5W-20 Super Premium Motor Oil CXO-5W20-LSP12 (Canada); or equivalent WSS-M2C930-A

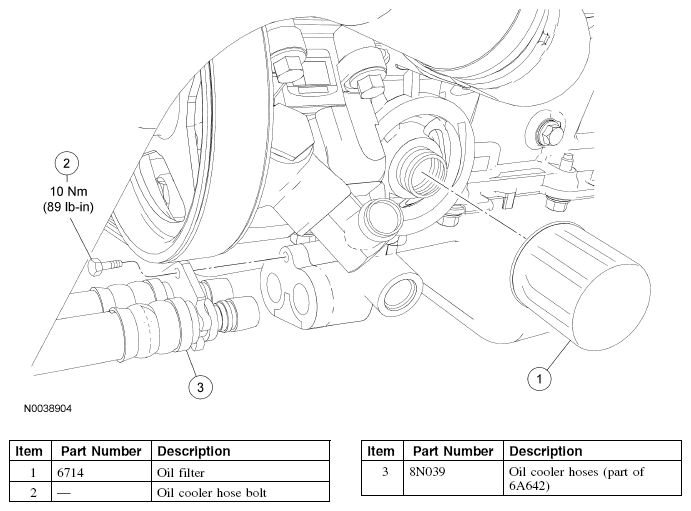

Fig 1: Oil Cooler Replacement Components (1 Of 2) With Torque Specifications
G04705247Courtesy of FORD MOTOR CO.

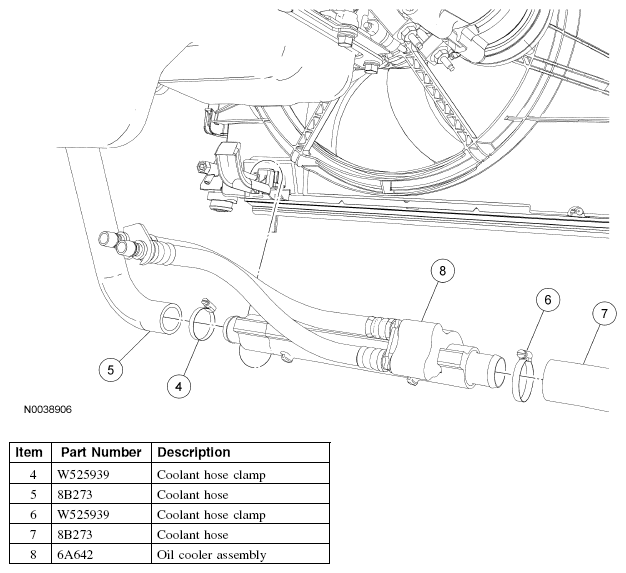

Fig 2: Identifying Oil Cooler Components (2 Of 2)
G04705248Courtesy of FORD MOTOR CO.
