Fuel Rail and Fuel Injector Components - Exploded View

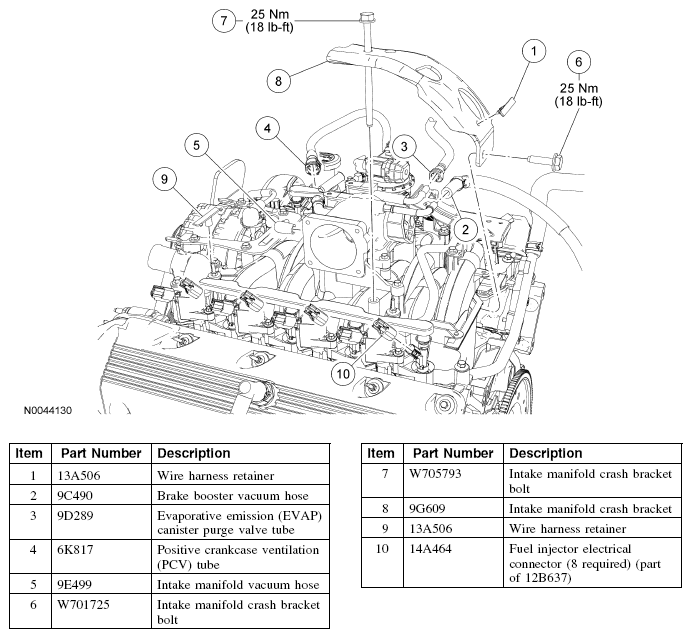

Fig 1: Exploded View Of Fuel Rail And Fuel Injector Components With Torque Specifications (1 Of 3)

Courtesy of FORD MOTOR CO.

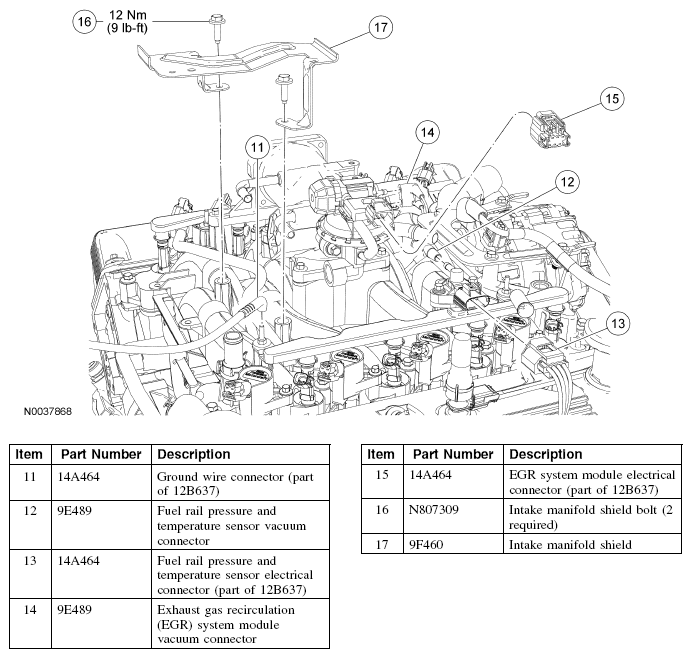

Fig 2: Exploded View Of Fuel Rail And Fuel Injector Components With Torque Specifications (2 Of 3)

Courtesy of FORD MOTOR CO.

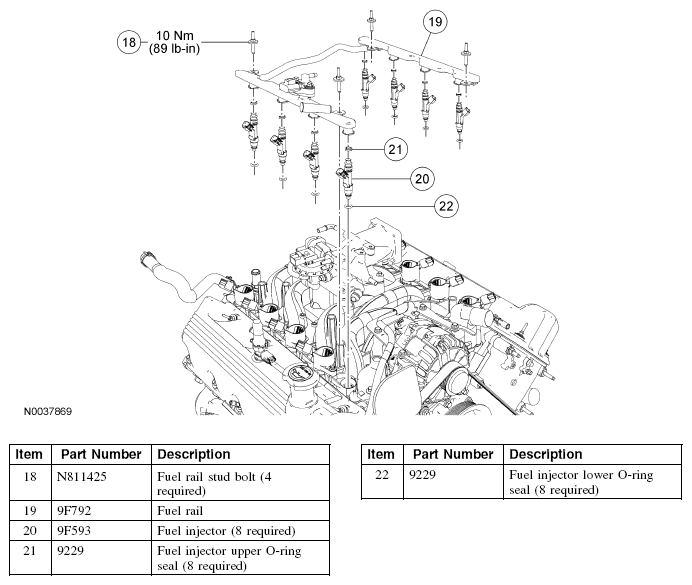

Fig 3: Exploded View Of Fuel Rail And Fuel Injector Components With Torque Specifications (3 Of 3)

Courtesy of FORD MOTOR CO.
