Forward Clutch Cylinder: Notes

SPECIAL TOOL(S)

Courtesy of FORD MOTOR CO.	Dial Indicator Gauge with Holding Fixture 100-002 (TOOL-4201-C) or equivalent
Courtesy of FORD MOTOR CO.	Compressor, Clutch Spring 307-096 (T81P-70235-A)
Courtesy of FORD MOTOR CO.	Protector, Piston Seal 307-020 (T68P-7D158-A2)
Courtesy of FORD MOTOR CO.	Protector, Piston Seal 307-078 (T80L-77140-A)

MATERIALS

Item	Specification
MERCON® V Automatic Transmission Fluid XT-5-QM	MERCON® V

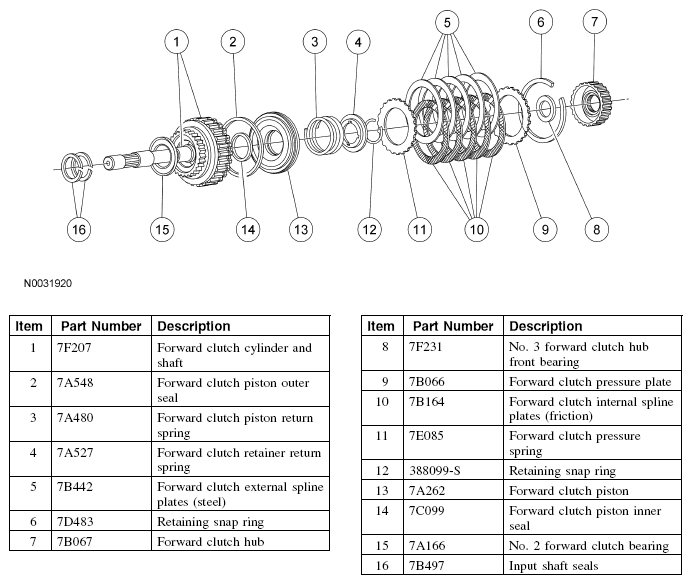

Fig 1: Exploded View Of Forward Clutch

Courtesy of FORD MOTOR CO.
