Windshield Glass: Notes

SPECIAL TOOL(S)

G04683662Courtesy of FORD MOTOR CO.
Interior Auto Glass Cut-Out Knife Kit (Electric)
164-R2450 or equivalent
G04683663Courtesy of FORD MOTOR CO.
Pneumatic Knife with Offset Blade
107-R1511 or equivalent
G04683664Courtesy of FORD MOTOR CO.
The Pumper
164-R2459 or equivalent
MATERIAL

Item Specification
DOW AUTOMOTIVE 2-HOUR CURE
Dow Urethane Adhesive Betaseal® Express -
Dow Urethane One Step Glass Primer Betaprime® 5500/5500A/5500SA -
SIKA 2-HOUR CURE
Sika Urethane Adhesive Sika Tack ASAP -
Sika Urethane Metal and Glass Primer Sika 206 G+P -
Ultra-Clear Spray Glass Cleaner ZC-23 ESR-M14P5-A

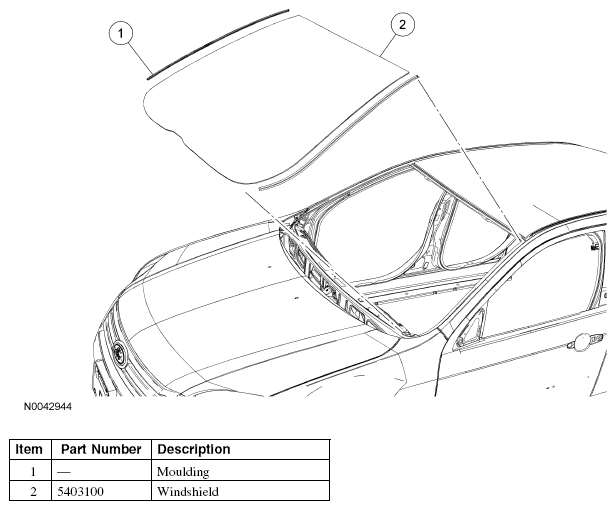

Fig 1: Identifying Windshield Glass Components
G04683665Courtesy of FORD MOTOR CO.
