Exhaust System - Exploded View

2.3L PZEV

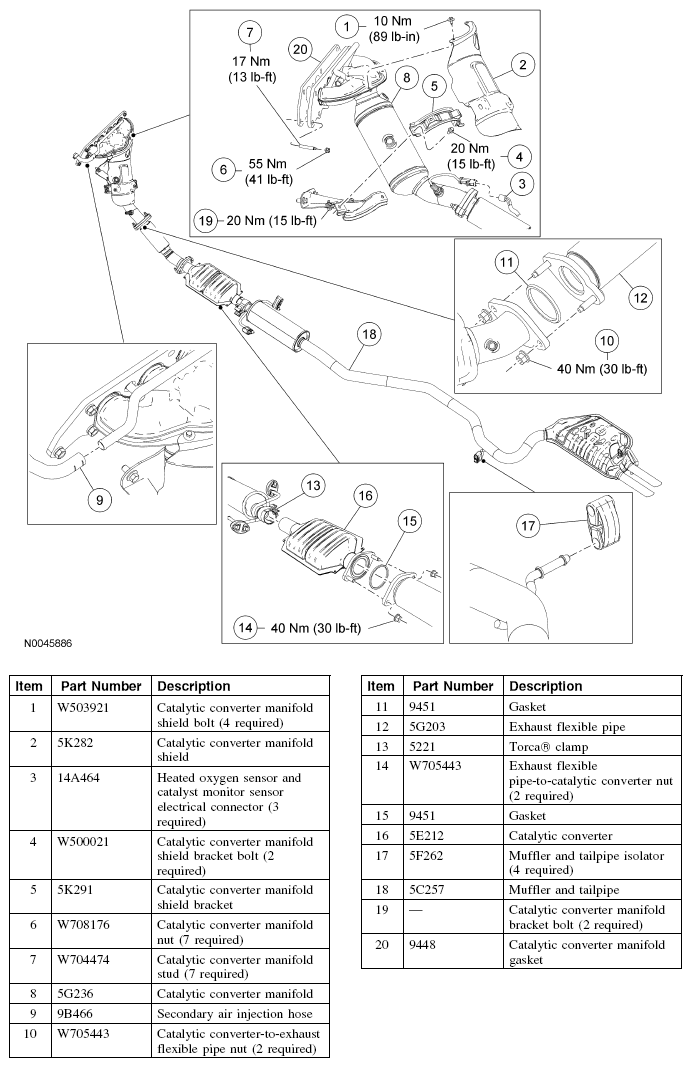

Fig 1: Exploded View Of Exhaust System With Torque Specification (1 Of 4)

Courtesy of FORD MOTOR CO.

2.3L Non-PZEV

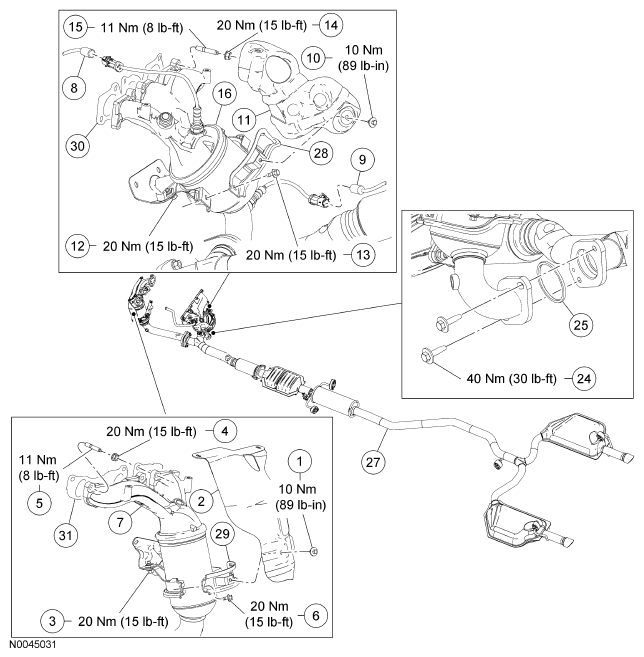

Fig 2: Exploded View Of Exhaust System With Torque Specification (2 Of 4)

Courtesy of FORD MOTOR CO.

3.0L

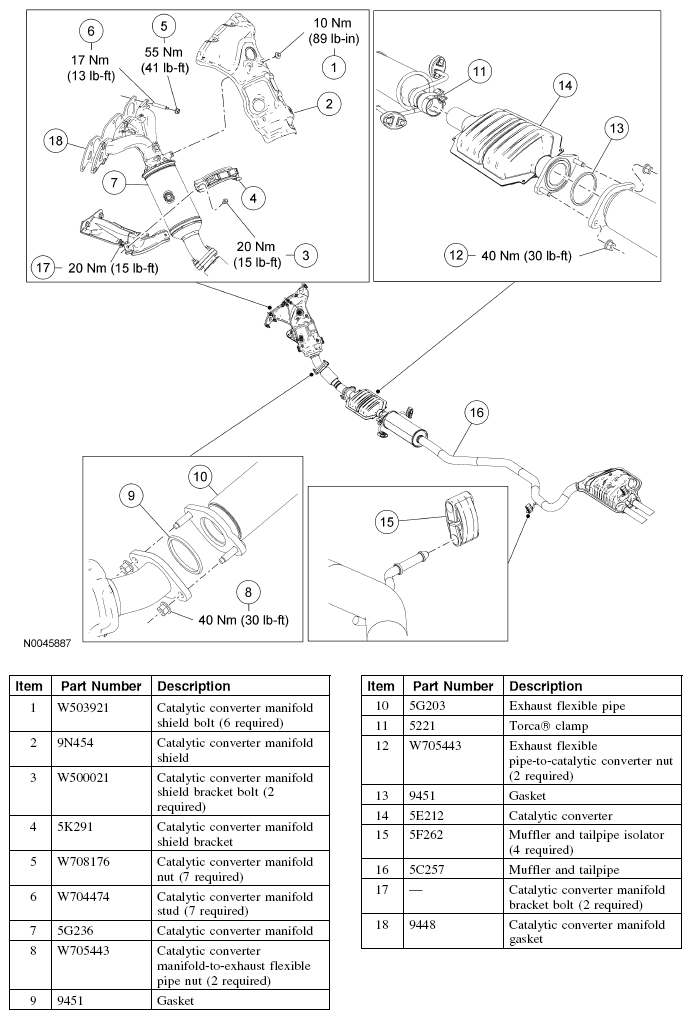

Fig 3: Exploded View Of Exhaust System With Torque Specification (3 Of 4)

Courtesy of FORD MOTOR CO.

3.0L

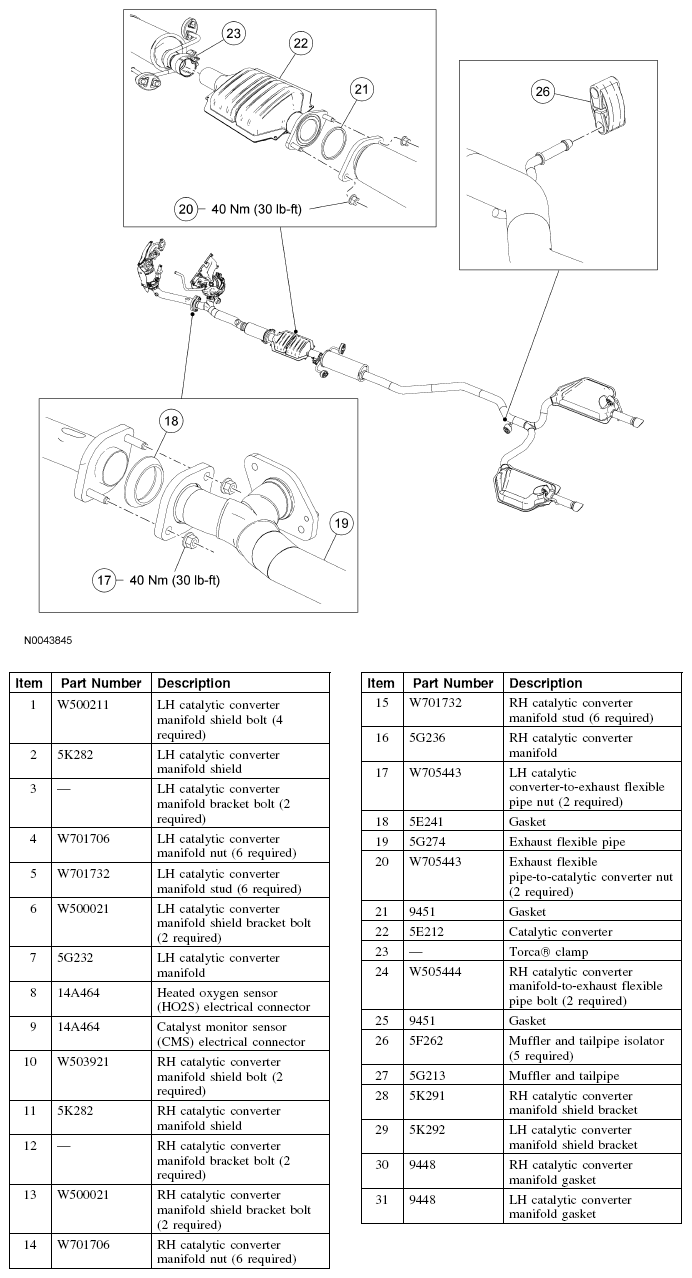

Fig 4: Exploded View Of Exhaust System With Torque Specification (4 Of 4)
