Accelerator Pedal and Bracket: Notes

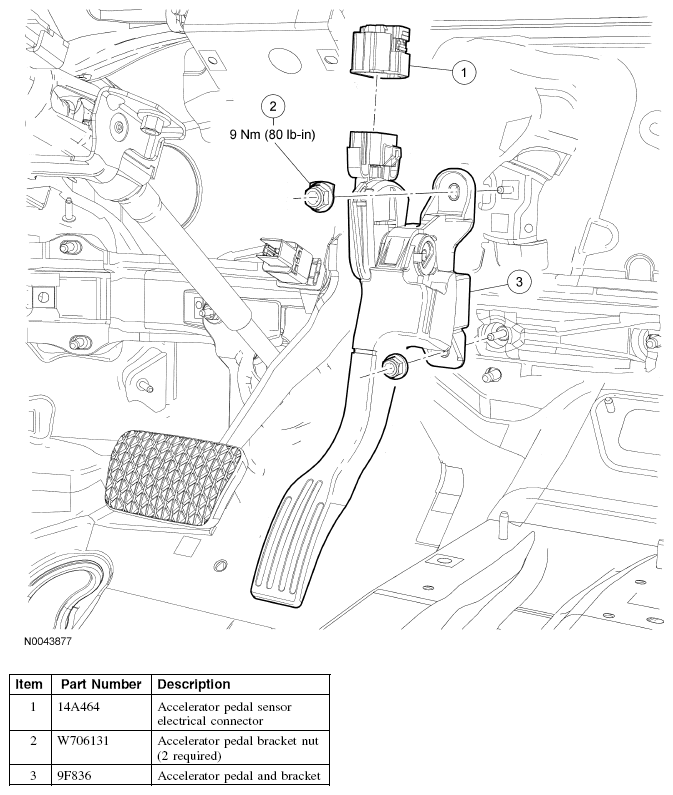

Fig 1: Identifying Accelerator Pedal And Bracket Remove/Install Components
G04684229Courtesy of FORD MOTOR CO.
