Driver Seat Horizontal Motor Connector

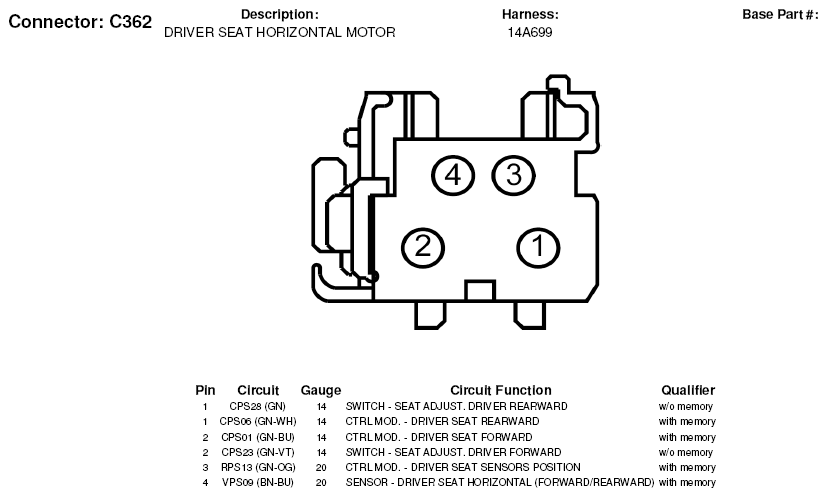

Fig 1: Driver Seat Horizontal Motor Connector End View (C362)
G05182613Courtesy of FORD MOTOR CO.
