6 Speed Transmission Control Module Connector
6 Speed Transmission Control Module Connector

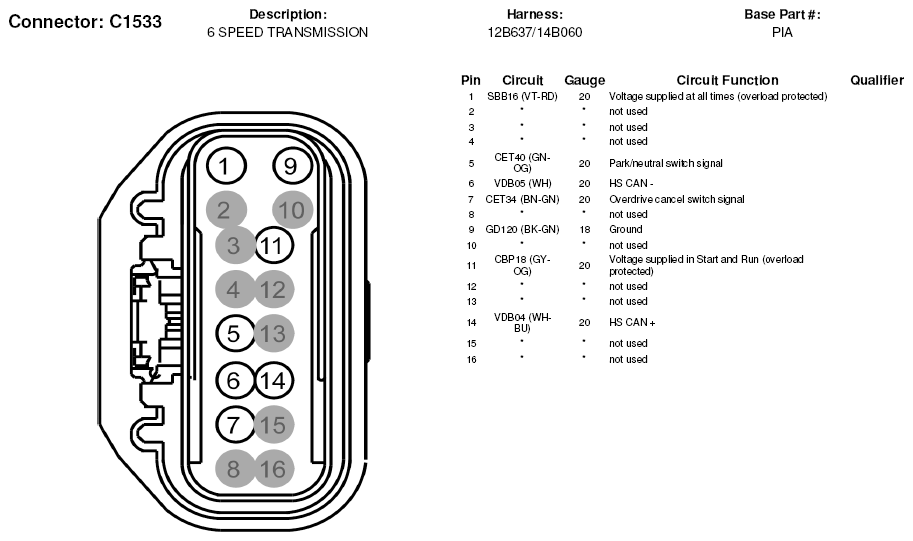

Fig 1: 6 Speed Transmission Control Module Connector End View (C1533)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
