Active Torque Control Coupling Connector

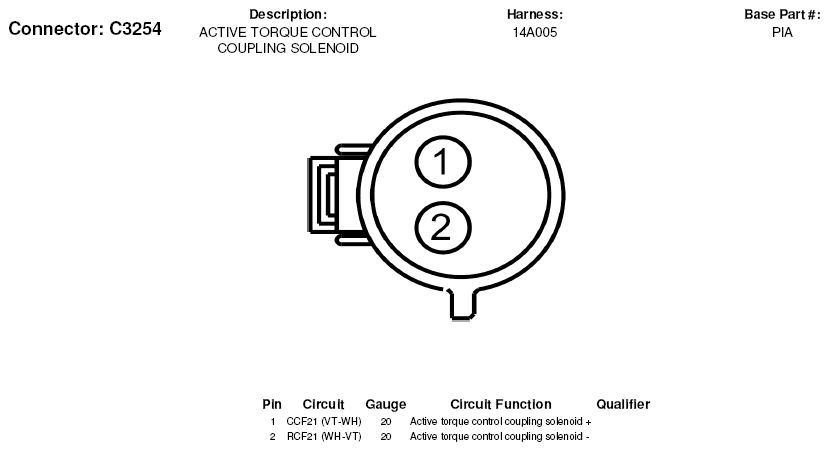

Fig 1: Active Torque Control Coupling Connector End View (C3254)
G05180874Courtesy of FORD MOTOR CO.
