All Wheel Drive Control Connector
All Wheel Drive Control Connector

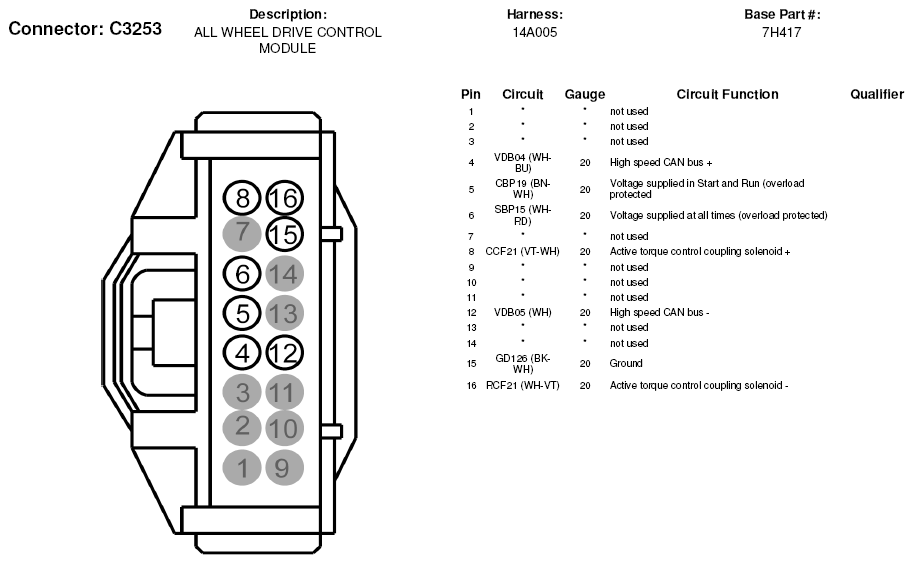

Fig 1: All Wheel Drive Control Connector End View (C3253)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
