Audio Jack Connector
Audio Jack Connector

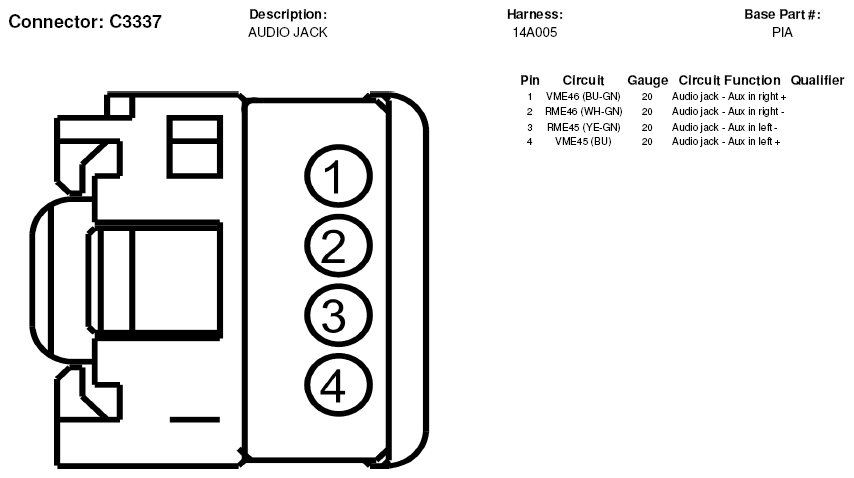

Fig 1: Audio Jack Connector End View (C3337)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
