Coupler Assembly 1 Connector
Coupler Assembly 1 Connector

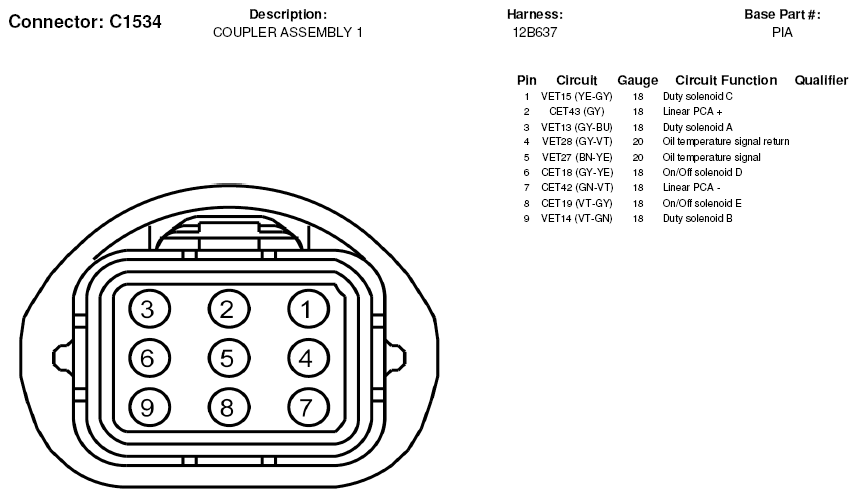

Fig 1: Coupler Assembly 1 Connector End View (C1534)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
