Dimmer Switch Connector
Dimmer Switch Connector

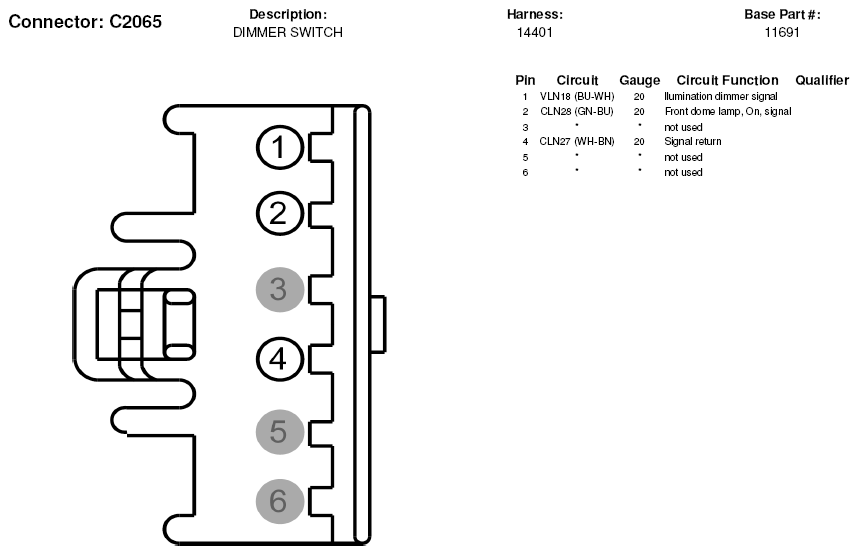

Fig 1: Dimmer Switch Connector End View (C2065)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
