Dual Knock Sensor Connector
Dual Knock Sensor Connector

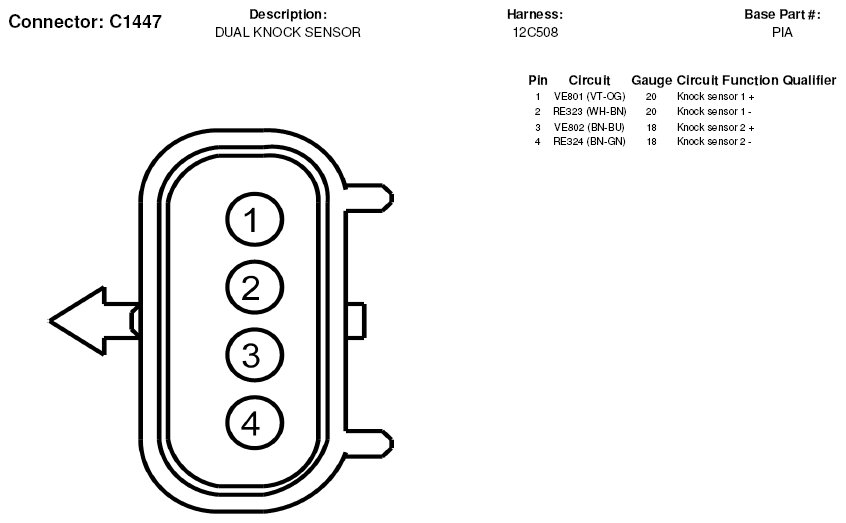

Fig 1: Dual Knock Sensor Connector End View (C1447)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
