Electronic Automatic Temperature Control Connector

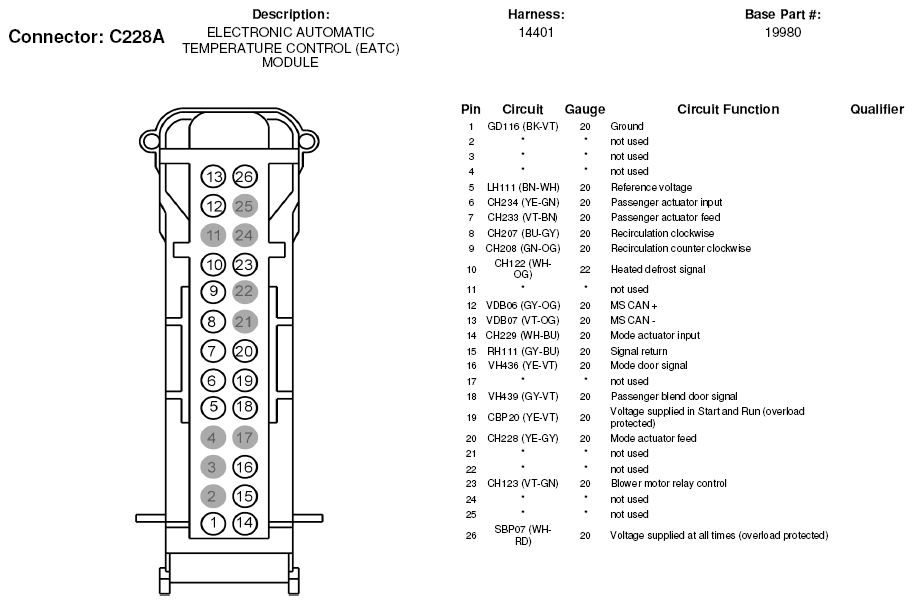

Fig 1: Electronic Automatic Temperature Control Connector End View (C228A)

Courtesy of FORD MOTOR CO.

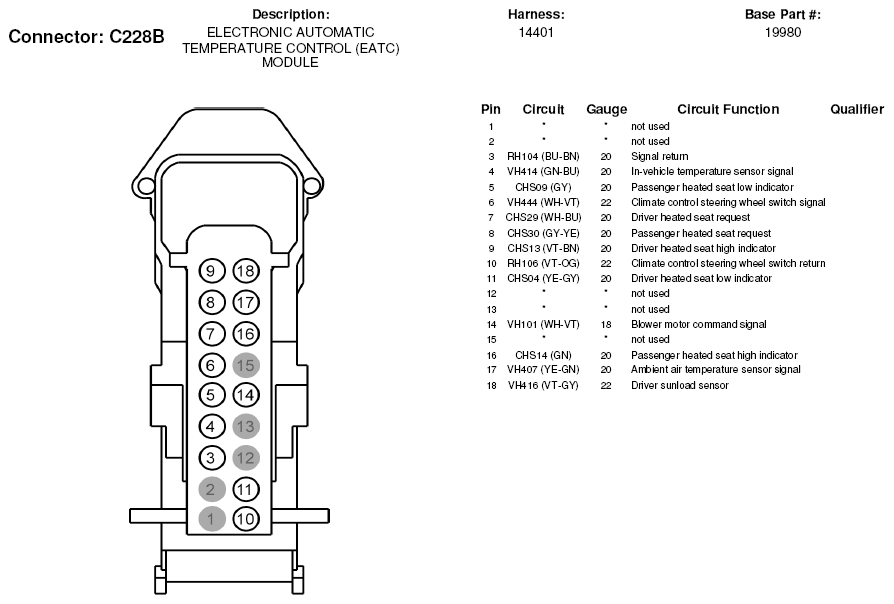

Fig 2: Electronic Automatic Temperature Control Connector End View (C228B)

Courtesy of FORD MOTOR CO.
