Engine Coolant Temperature Sensor Connector
Engine Coolant Temperature Sensor Connector

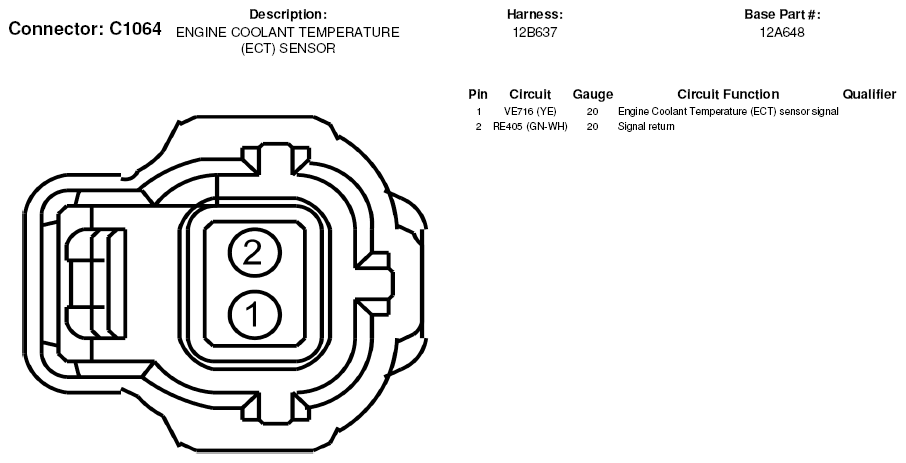

Fig 1: Engine Coolant Temperature Sensor Connector End View (C1064)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
