Heated Seat Module Connectors

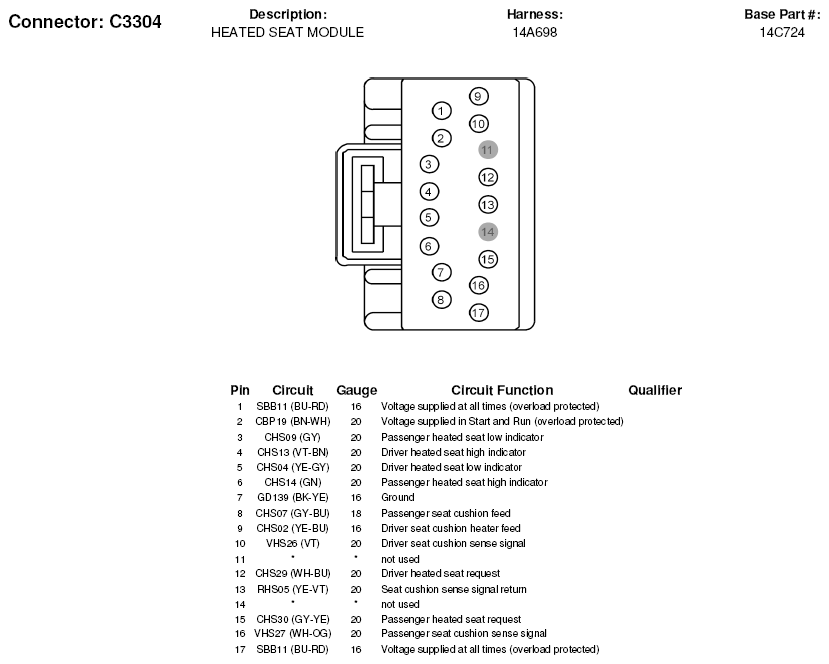

Fig 1: Heated Seat Module Connector End View (C3304)
G05180889Courtesy of FORD MOTOR CO.
