Intake Manifold Tuning Valve Connector

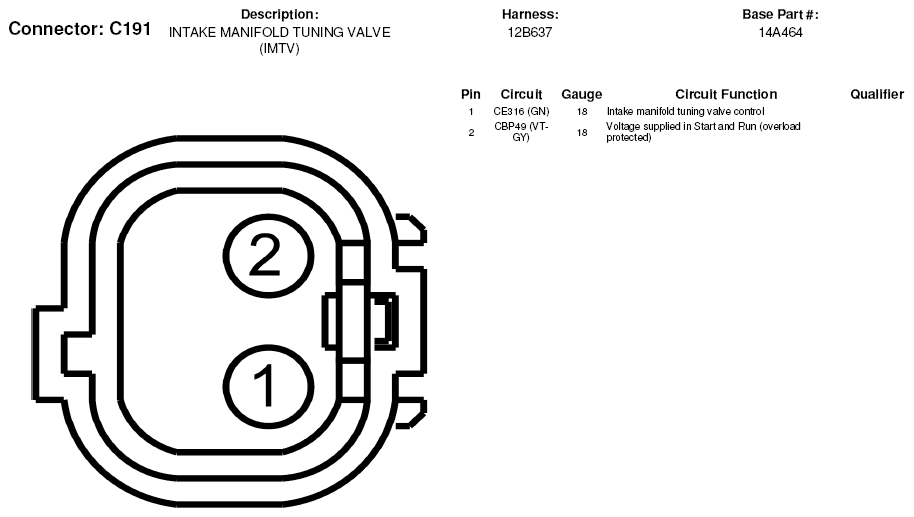

Fig 1: Intake Manifold Tuning Valve Connector End View (C191)
G05180599Courtesy of FORD MOTOR CO.
