Knock Sensor Connector

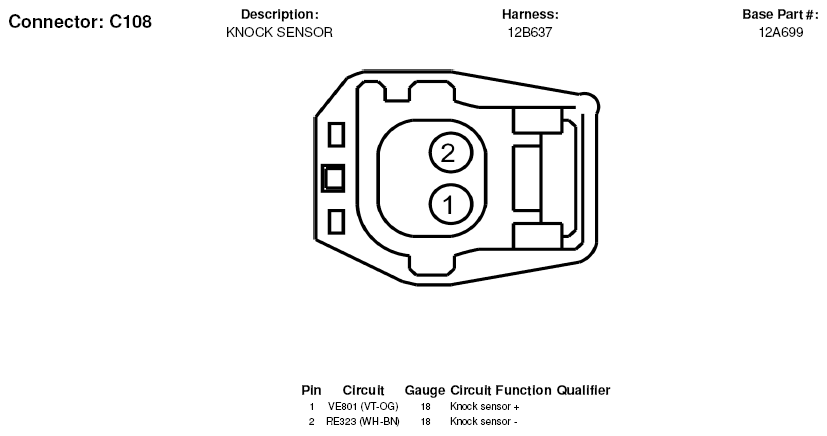

Fig 1: Knock Sensor Connector End View (C108)
G05180546Courtesy of FORD MOTOR CO.

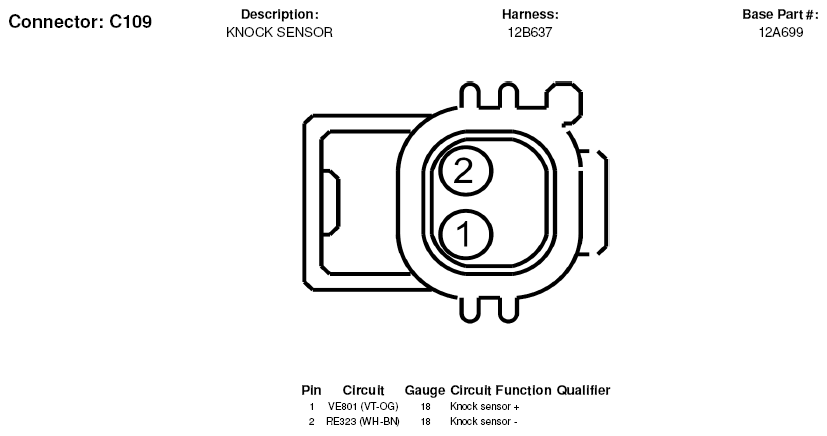

Fig 2: Knock Sensor Connector End View (C109)
G05180547Courtesy of FORD MOTOR CO.
