Manifold Absolute Pressure Sensor Connector

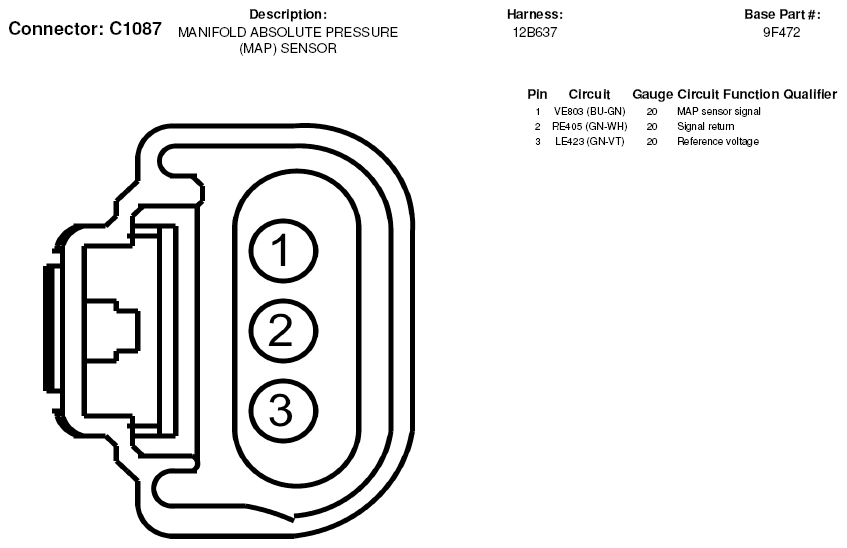

Fig 1: Manifold Absolute Pressure Sensor Connector End View (C1087)
G05180768Courtesy of FORD MOTOR CO.
