Passive Antitheft Transceiver Module Connector
Passive Antitheft Transceiver Module Connector

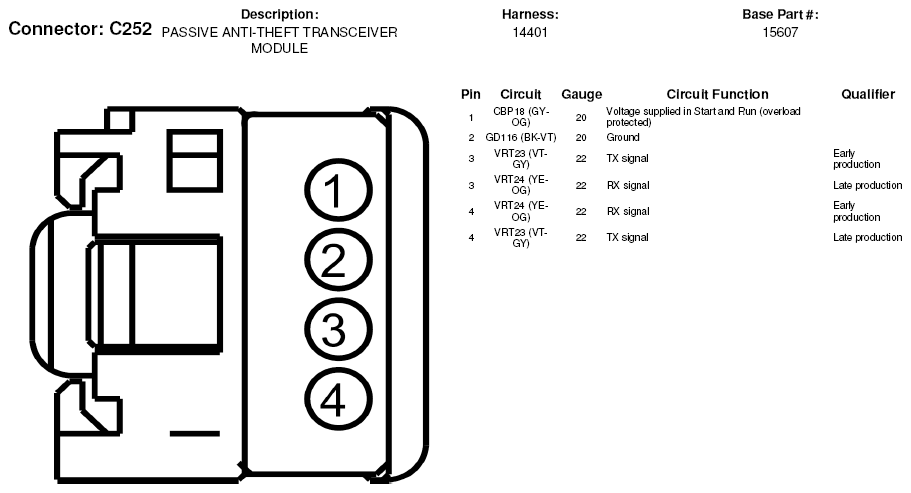

Fig 1: Passive Antitheft Transceiver Module Connector End View (C252)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
