Recliner Motor Connector

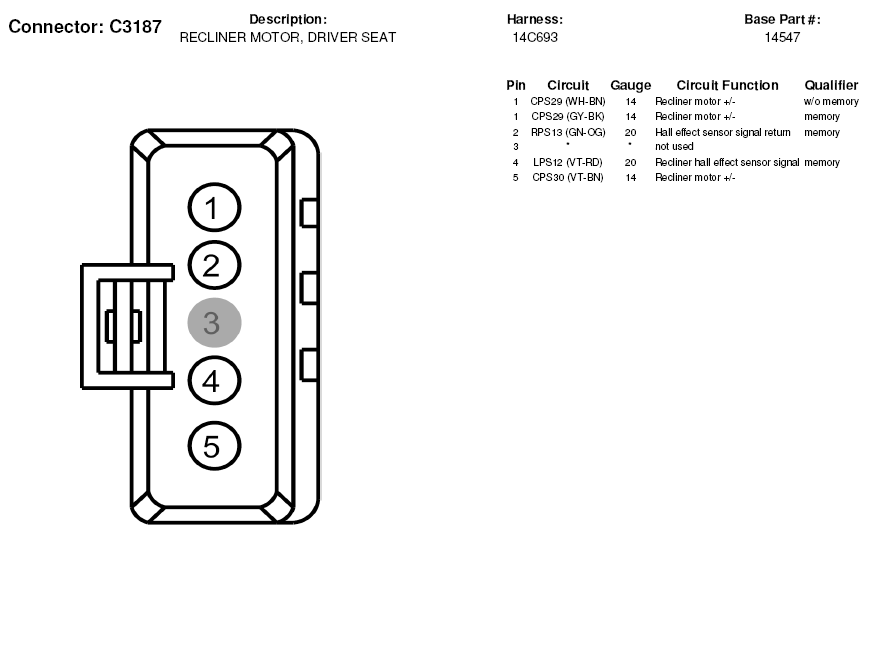

Fig 1: Recliner Motor Connector End View (C3187)
G05180863Courtesy of FORD MOTOR CO.

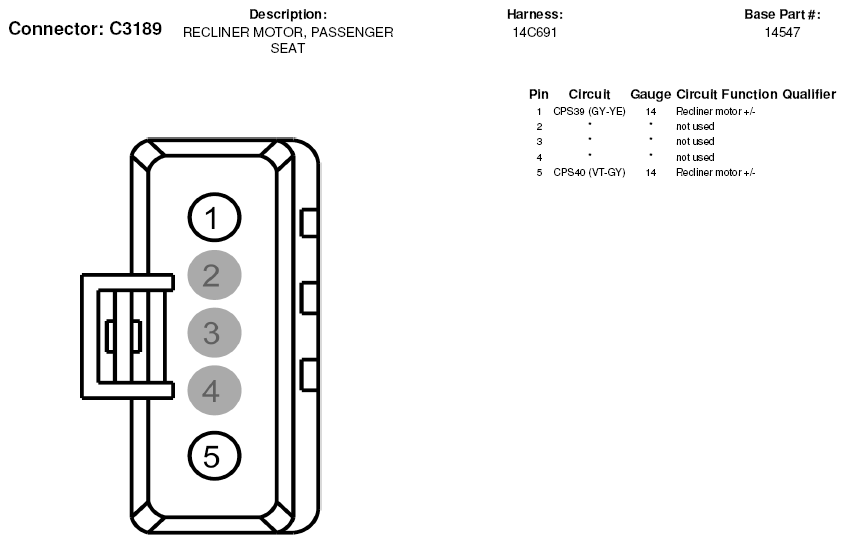

Fig 2: Recliner Motor Connector End View (C3189)
G05180864Courtesy of FORD MOTOR CO.
