Reversing Lamps Switch Connector
Reversing Lamps Switch Connector

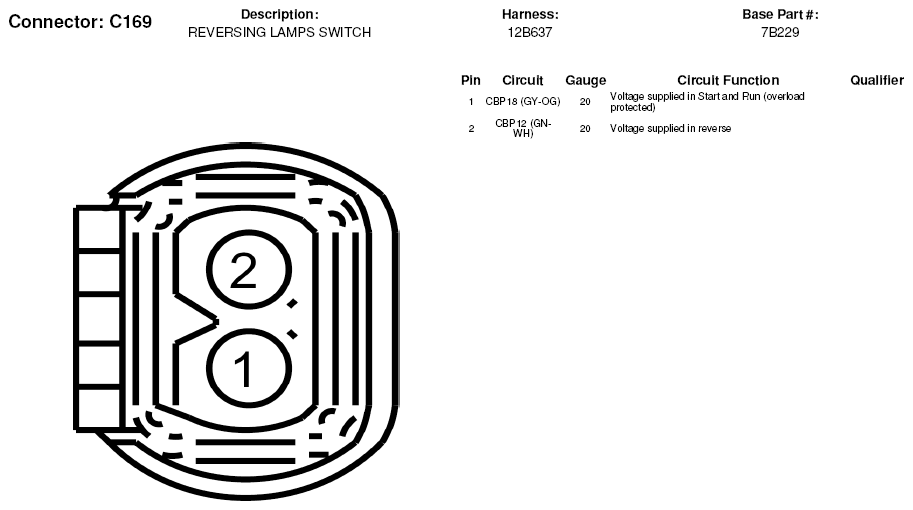

Fig 1: Reversing Lamps Switch Connector End View (C169)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
