Satellite Radio Receiver Connector
Satellite Radio Receiver Connector

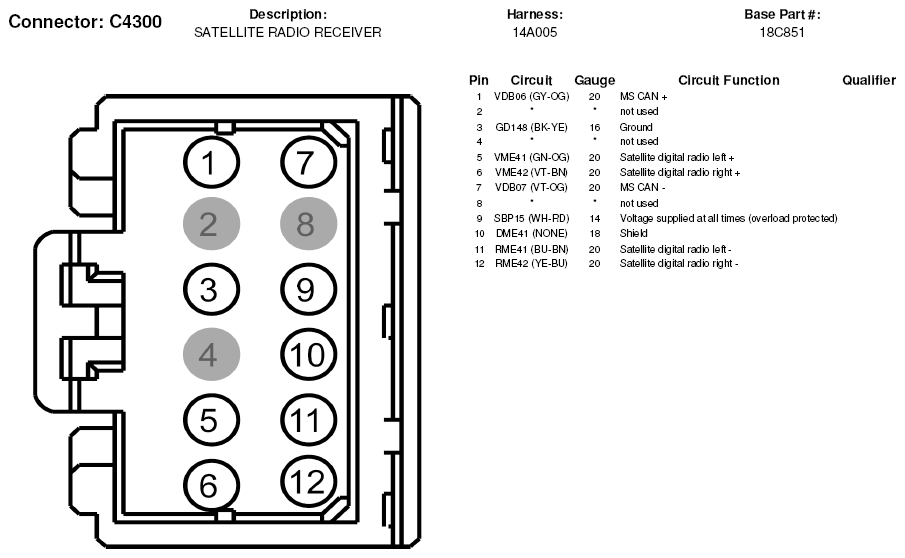

Fig 1: Satellite Radio Receiver Connector End View (C4300)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
