Side Air Curtain Module Connector

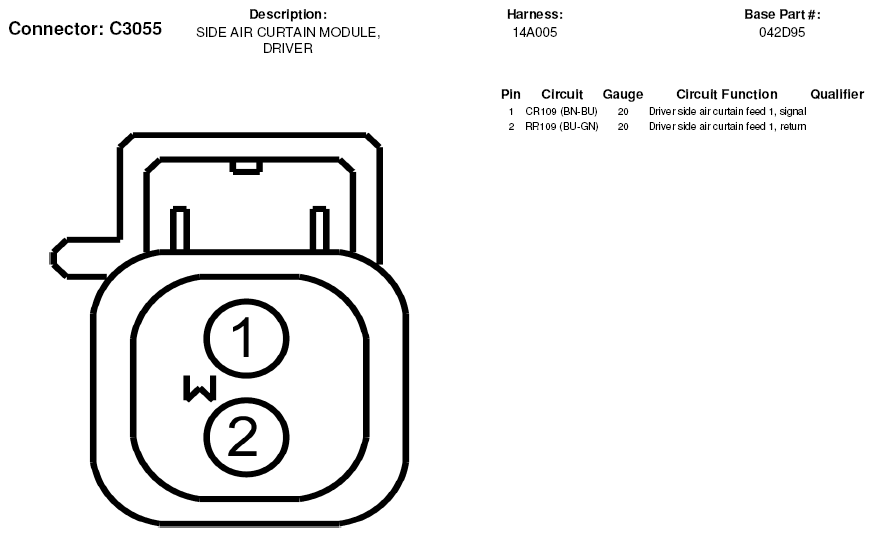

Fig 1: Side Air Curtain Module Connector End View (C3055)
G05180854Courtesy of FORD MOTOR CO.

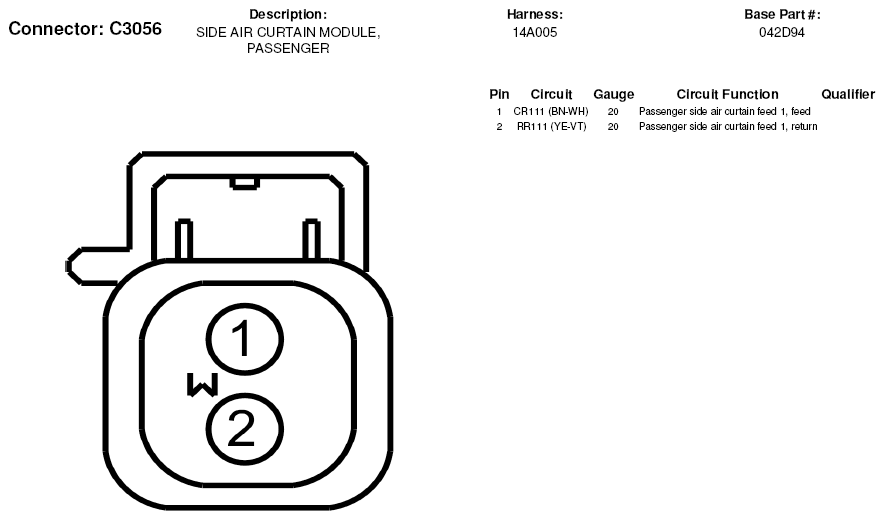

Fig 2: Side Air Curtain Module Connector End View (C3056)
G05180855Courtesy of FORD MOTOR CO.
