Tweeter Connector

Fig 1: Tweeter Connector End View (C569)
G05180725Courtesy of FORD MOTOR CO.

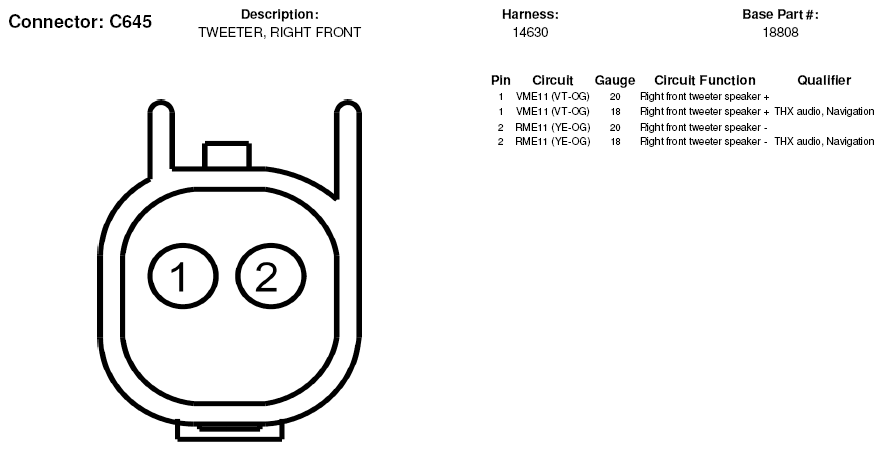

Fig 2: Tweeter Connector End View (C645)
G05180739Courtesy of FORD MOTOR CO.
