Vehicle Speed Sensor Connector
Vehicle Speed Sensor Connector

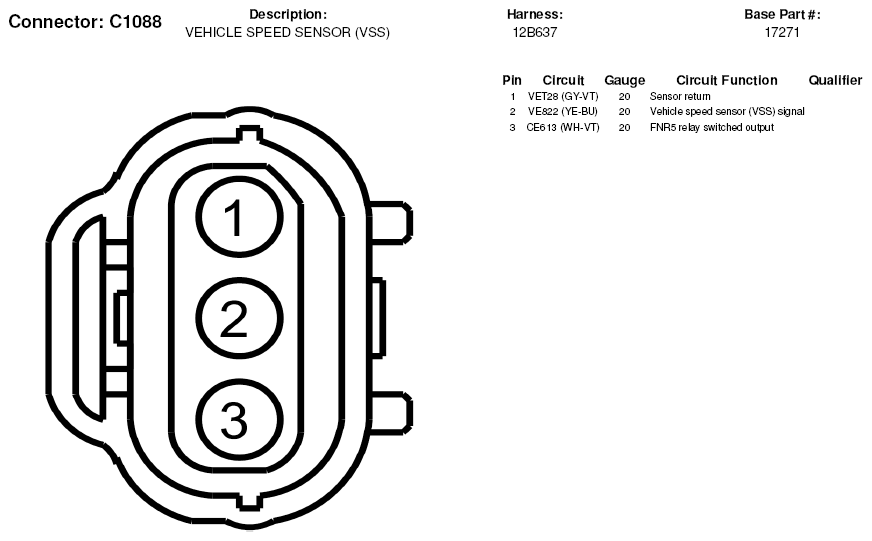

Fig 1: Vehicle Speed Sensor Connector End View (C1088)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
