Window Adjust Switch Connectors

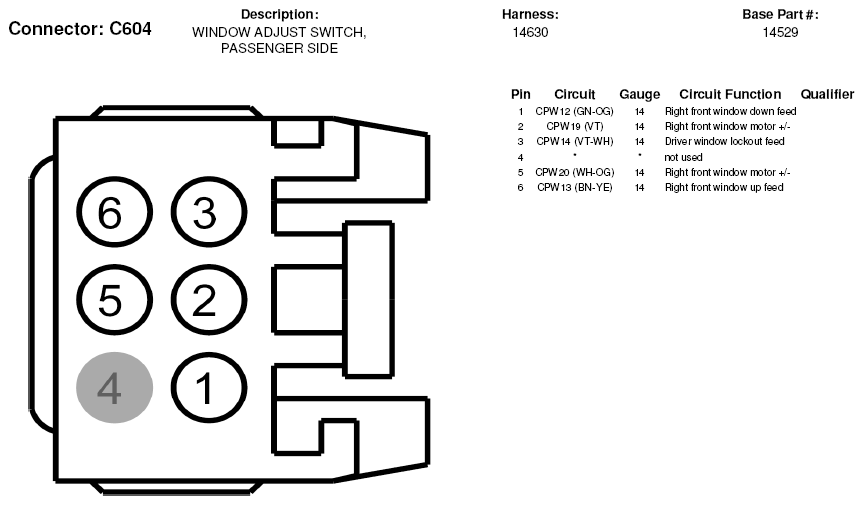

Fig 1: Window Adjust Switch Connector End View (C604)

Courtesy of FORD MOTOR CO.

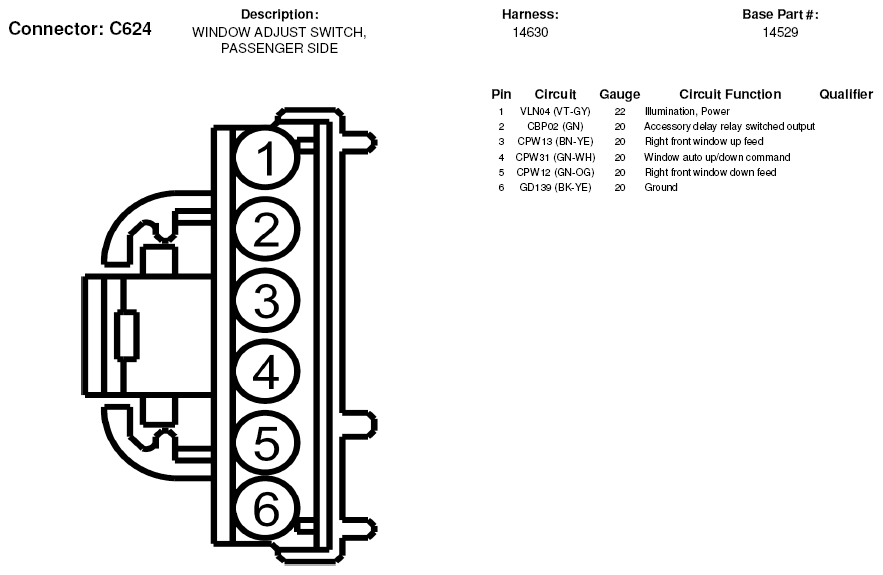

Fig 2: Window Adjust Switch Connector End View (C624)

Courtesy of FORD MOTOR CO.

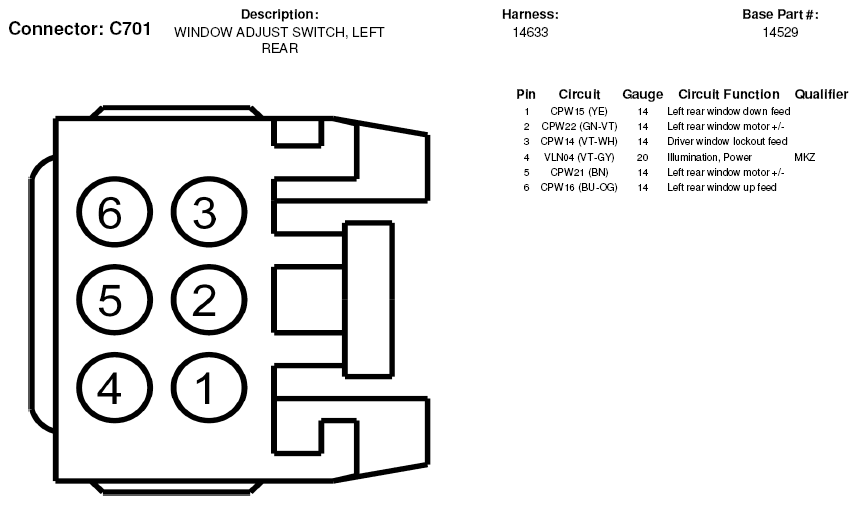

Fig 3: Window Adjust Switch Connector End View (C701)

Courtesy of FORD MOTOR CO.

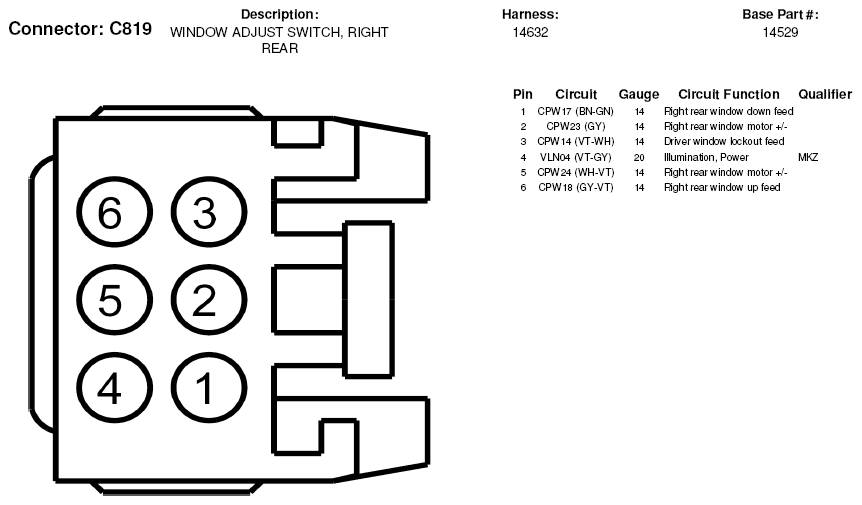

Fig 4: Window Adjust Switch Connector End View (C819)

Courtesy of FORD MOTOR CO.
