Blower Motor Connector
Blower Motor Connector

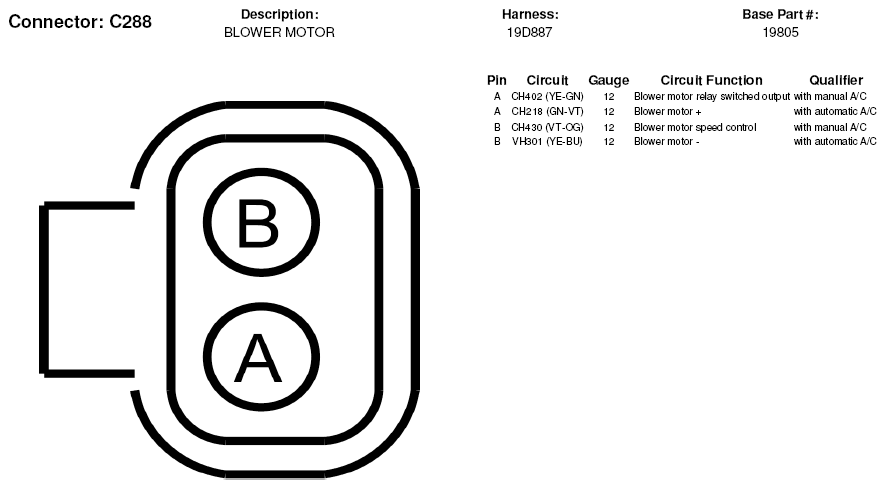

Fig 1: Blower Motor Connector End View (C288)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
