Ignition Transformer Capacitor 2 Connector

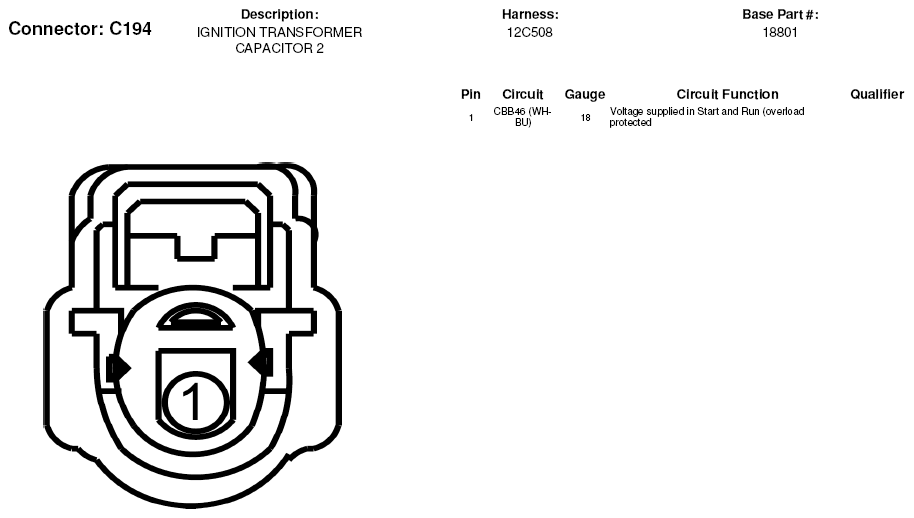

Fig 1: Ignition Transformer Capacitor 2 Connector End View (C194)
G05180601Courtesy of FORD MOTOR CO.
