THX Amplifier Connector

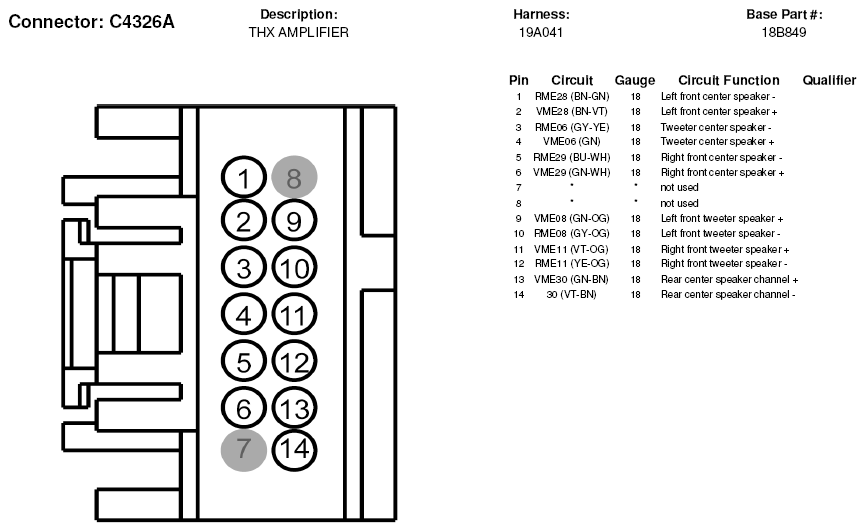

Fig 1: THX Amplifier Connector End View (C4326A)
G05180909Courtesy of FORD MOTOR CO.

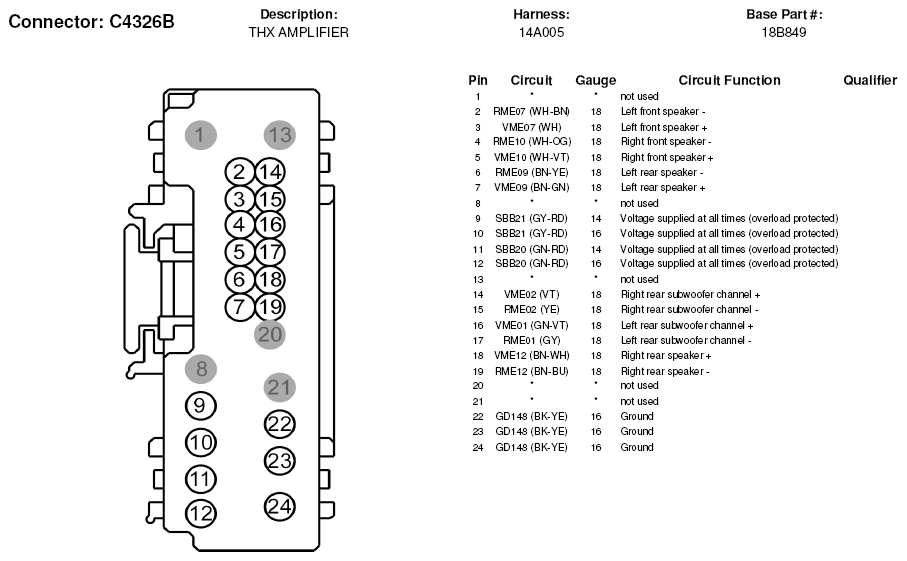

Fig 2: THX Amplifier Connector End View (C4326B)
G05180910Courtesy of FORD MOTOR CO.

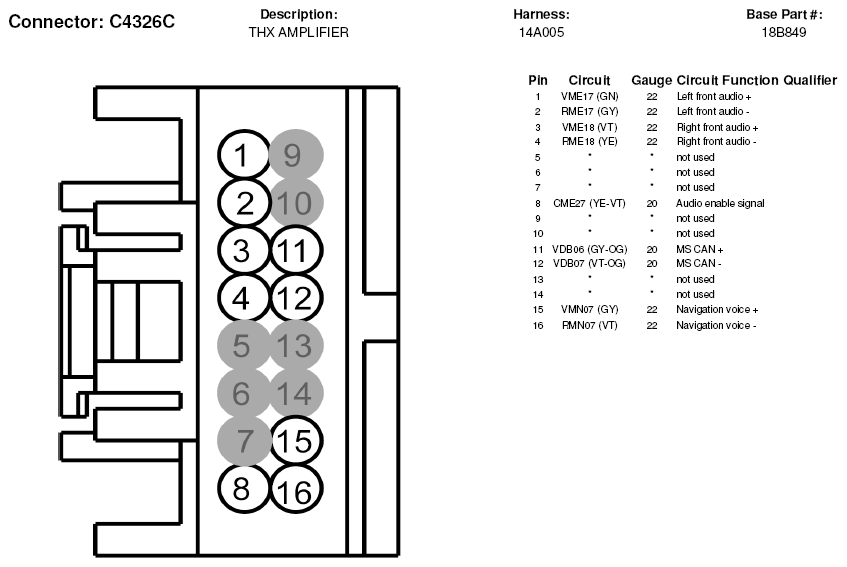

Fig 3: THX Amplifier Connector End View (C4326C)
G05180911Courtesy of FORD MOTOR CO.
