Accelerator Pedal and Bracket : Notes

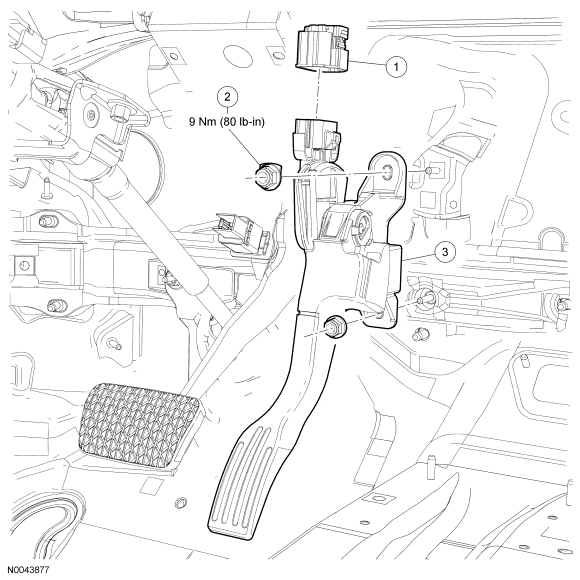

Fig 1: Exploded View Of Accelerator Pedal & Bracket With Torque Specification

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	14A464	Accelerator pedal sensor electrical connector
2	W706131	Accelerator pedal bracket nut (2 required)
3	9F836	Accelerator pedal and bracket
