Powertrain Control Module (PCM): Notes

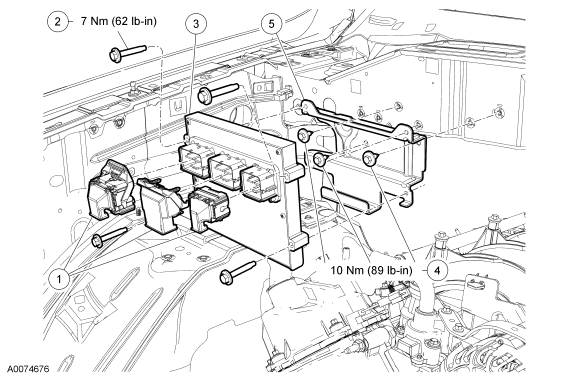

Fig 1: Identifying Powertrain Control Module (PCM) Components

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	14A464	Powertrain control module (PCM) electrical connectors (3 required)
2	W505428	PCM bolt (4 required)
3	AAA1001	PCM
4	N802229	PCM bracket bolts
5	12A659	PCM bracket
