Home › Lincoln › 2007 › Navigator RWD › Repair and Diagnosis (Single Page) › Electrical › Body Electrical › OEM Connector End Views › Connector Views › Anti-Lock Brake System Module Connector

Anti-Lock Brake System Module Connector

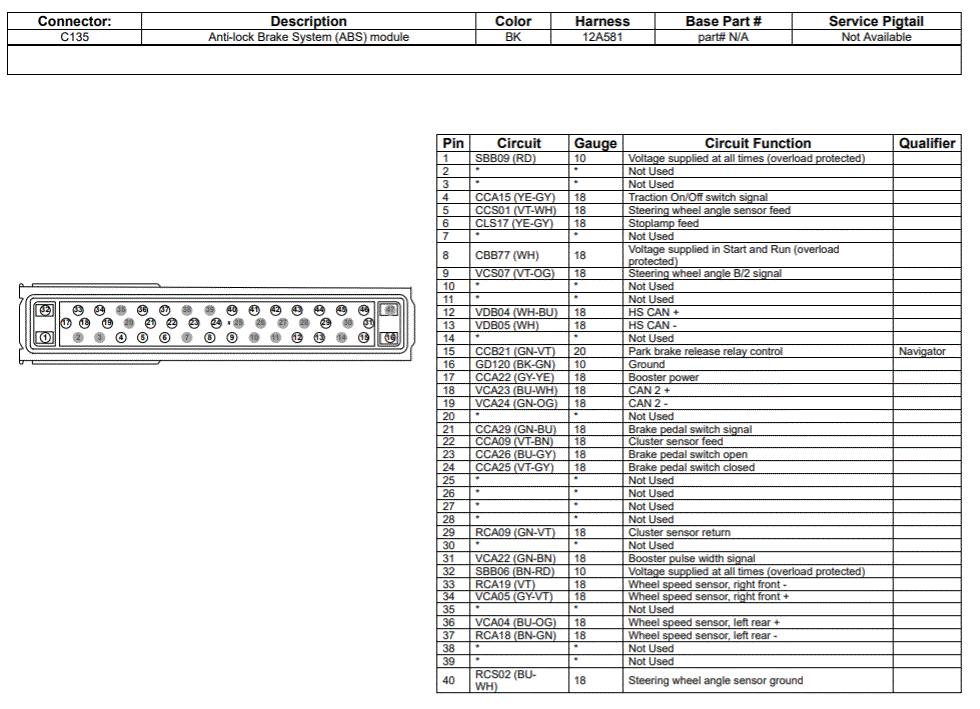

Fig 1: Anti-Lock Brake System Module Connector End View (C135) 1 of 2
G00610741Courtesy of FORD MOTOR CO.

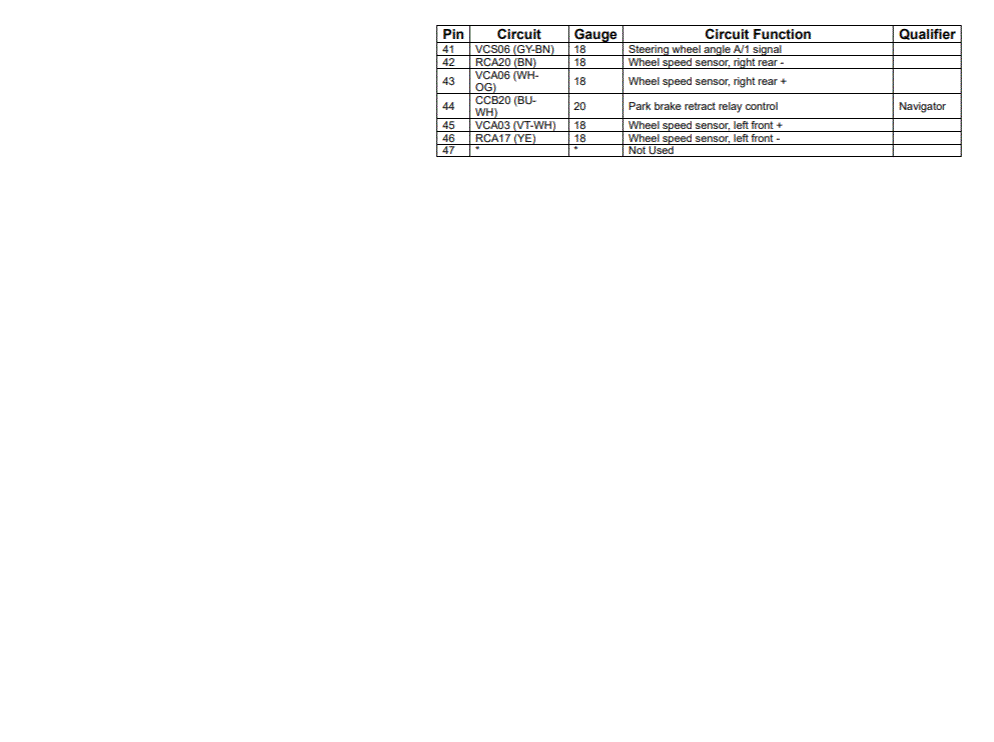

Fig 2: Anti-Lock Brake System Module Connector End View (C135) 2 of 2
G00610742Courtesy of FORD MOTOR CO.
