Auxiliary Relay Box 2

NOTE: For component location, see ELECTRICAL COMPONENT LOCATOR article.

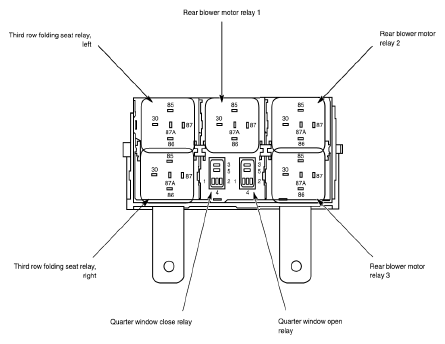

Fig 1: Identifying Auxiliary Relay Box 2 Components

Courtesy of FORD MOTOR CO.

AUXILIARY RELAY BOX 2 RELAY IDENTIFICATION

RELAY DESCRIPTION
Third row folding seat relay, left
Rear blower motor relay 1
Rear blower motor relay 2
Rear blower motor relay 3
Quarter window open relay
Quarter window close relay
Third row folding seat relay, right
